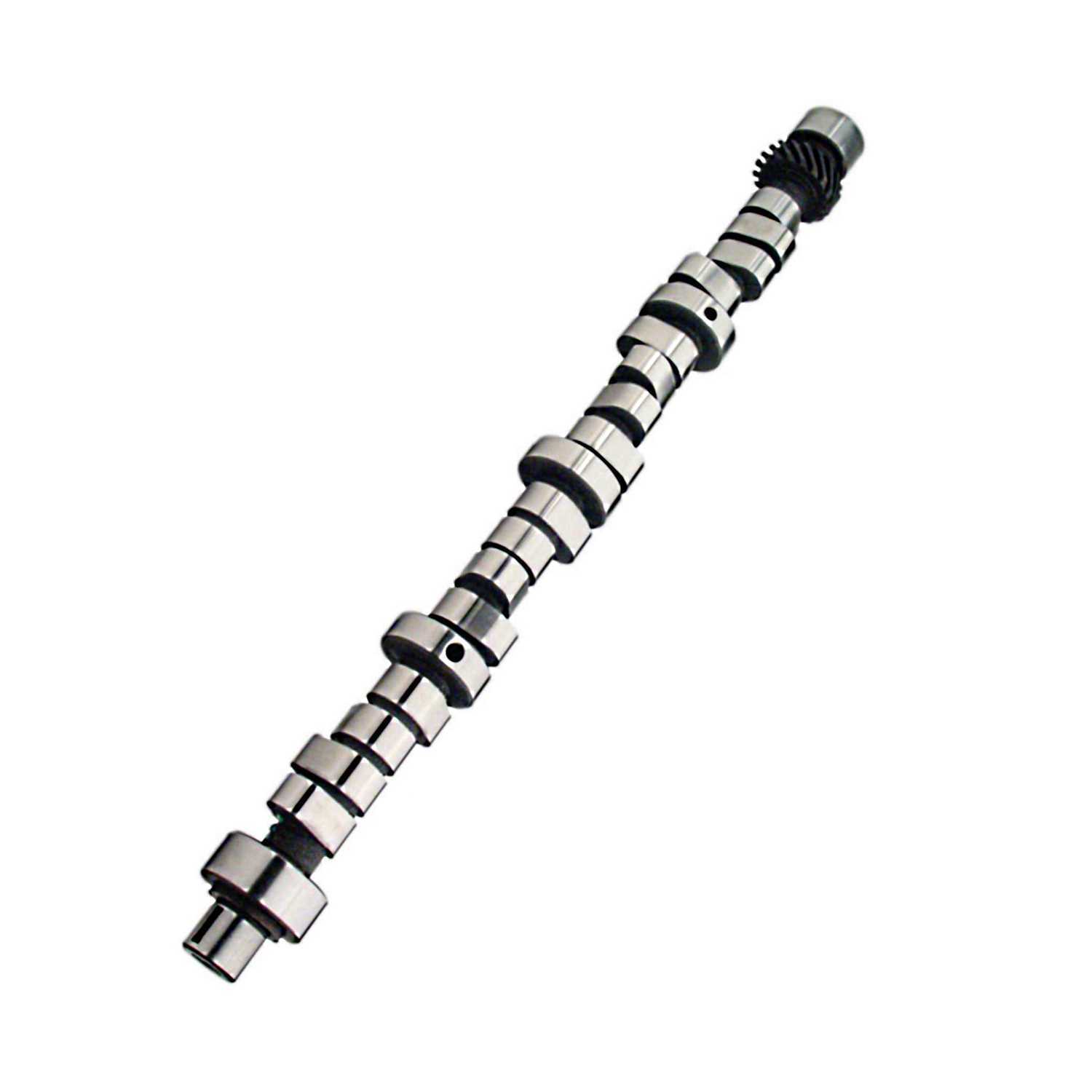

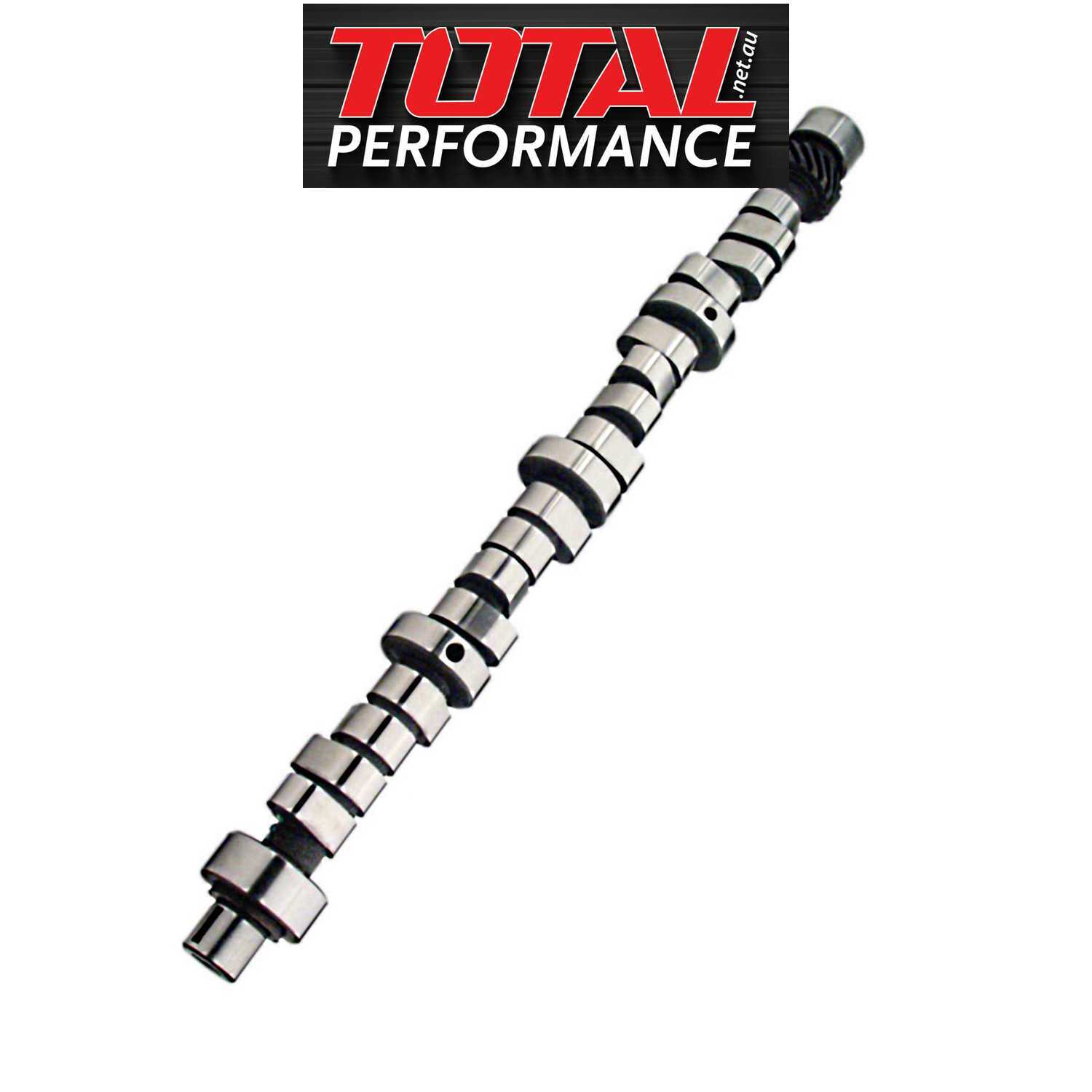

XR268HR-10 Xtreme Energy 218/224 LSA 110 Hydraulic Roller Camshaft suits Chrysler 318 340 360 Magnum Small Block, LA

COMP CAMS CHRYSLER 318 340 360 HYDRAULIC ROLLER CAMSHAFT

3.23-3.91 gears, stock converter in 340 and 360, mild converter in 318, 9:1 compression, street machine.

Engine Family     Chrysler 318 340 360 c.i. 8 Cylinder (1964-2002)

RPM Operating Range    1,400-5,500

Cam Type            Hydraulic Roller

Camshaft Series Xtreme Energy

Camshaft Gear Attachment          1-Bolt

Usage    Street/Performance

Advertised Intake Duration           268

Advertised Exhaust Duration       276

Intake Duration at .050 Inch Lift  218

Exhaust Duration at .050 Inch Lift               224

Intake Valve Lift 0.535

Exhaust Valve Lift              0.531

Lobe Lift Intake  0.357

Lobe Lift Exhaust              0.354

Lobe Separation                110

Intake Centerline              106

Valve Timing Lift                0.006

Exhaust Close ATDC         -2

Intake Open BTDC            3

Exhaust Open BBDC        46

Intake Close ABDC            35

Lifter Style           Hydraulic Roller
