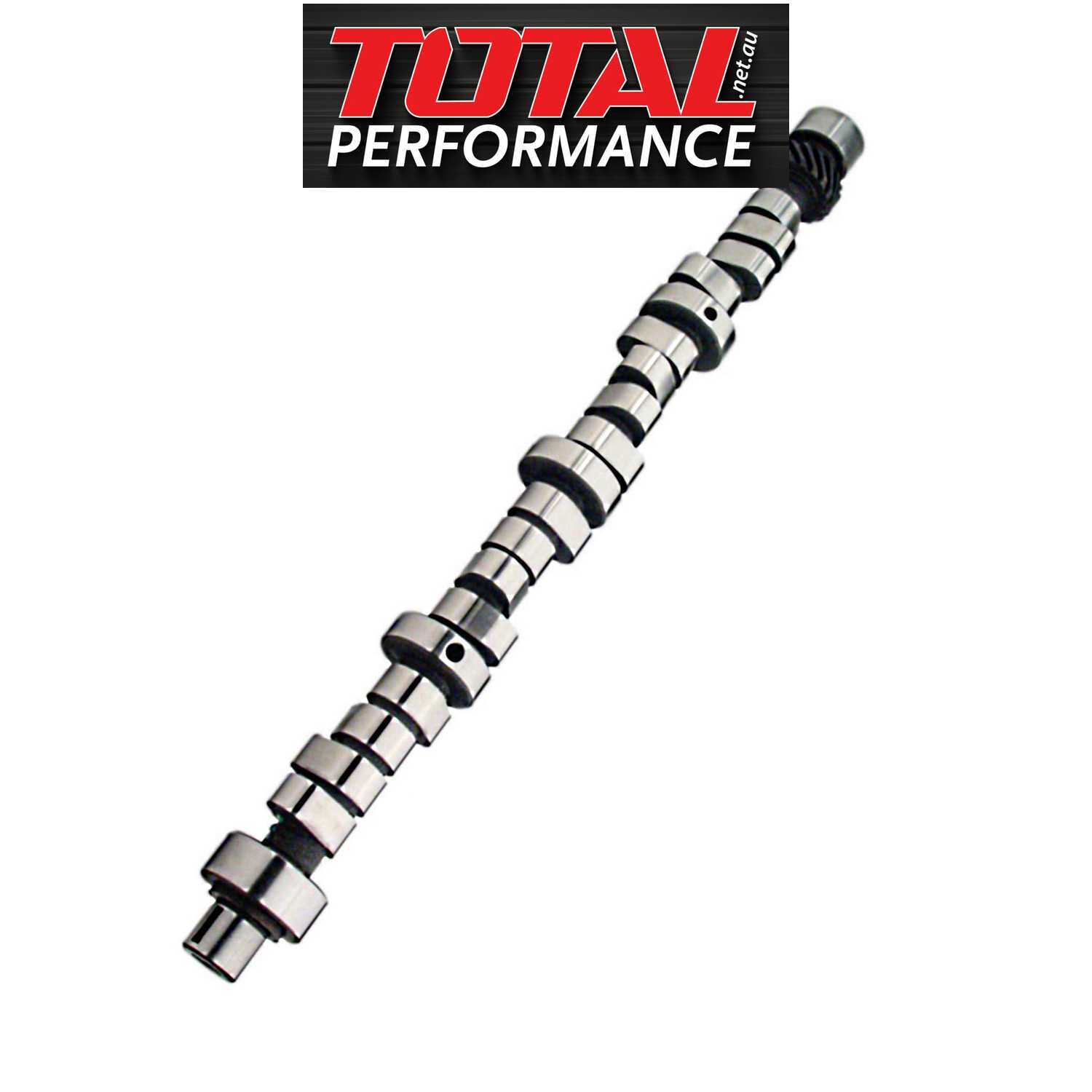

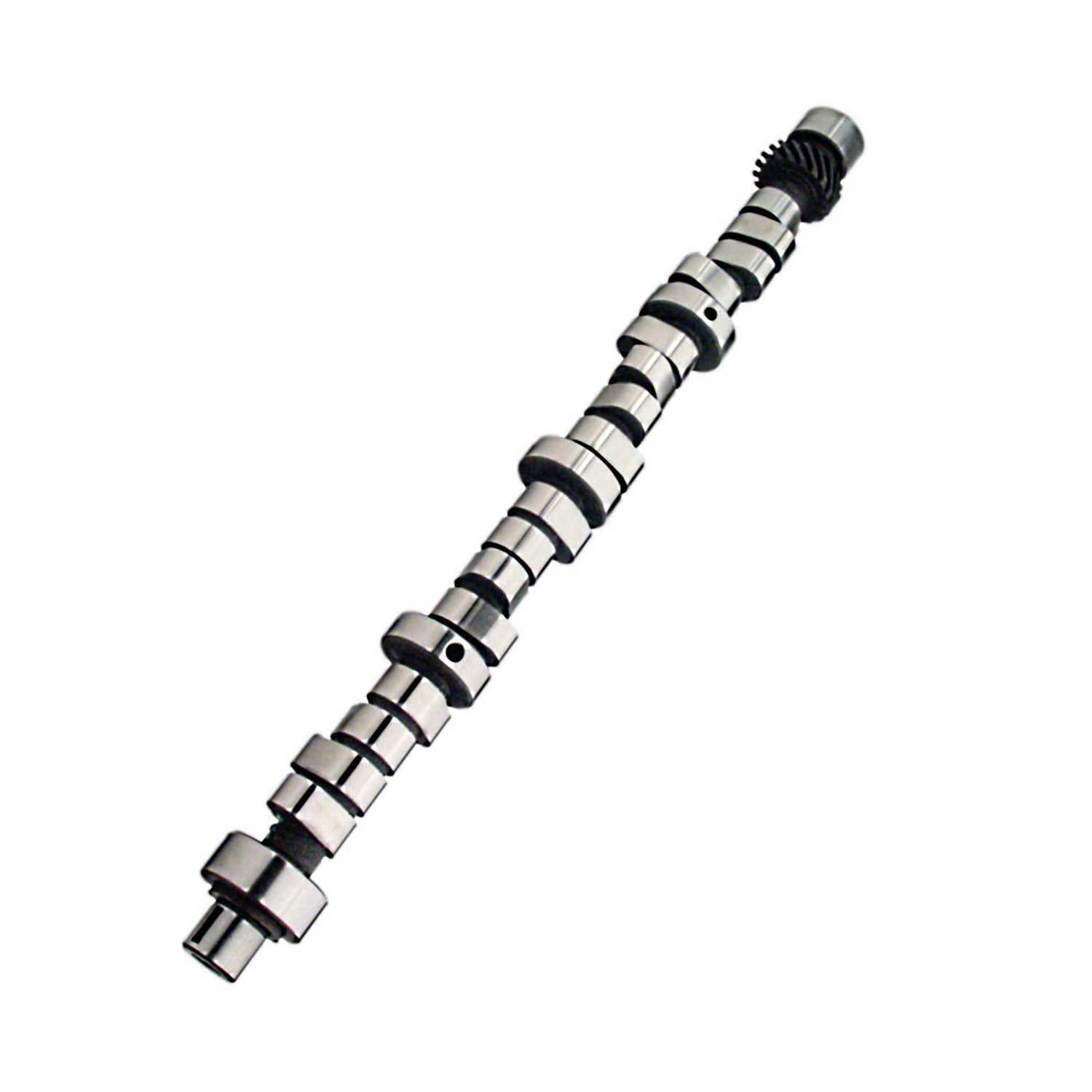

XR292HR-10 Xtreme Energy 242/248 Hydraulic Roller Camshaft suits Chrysler 318 340 360 Magnum Small Block, LA, MOPAR
RPM Range 2800 - 6400
or 4 payments of $209.93 with
Info
*Free shipping on orders over $200
Description
4.10 gear, 3000+ stall, 10:1 compression, Pro Street applications, very rough idle.
Engine Family: Chrysler 273-360 c.i. 8 Cylinder (1964-2002)
RPM Operating Range: 2,800-6,400
Grind Number: XR292HR-10
Cam Type: Hydraulic Roller
Lifter Style: Hydraulic Roller
Camshaft Series: Xtreme Energy
Usage: Street/Performance
Advertised Intake Duration: 292
Advertised Exhaust Duration: 300
Intake Duration at .050 Inch Lift: 242
Exhaust Duration at .050 Inch Lift: 248
Intake Valve Lift: 0.549
Exhaust Valve Lift: 0.544
Lobe Lift Intake: 0.366
Lobe Lift Exhaust: 0.363
Lobe Separation: 110
Intake Centerline: 106
Exhaust Close ATDC: 10
Intake Open BTDC: 15
Exhaust Open BBDC: 58
Intake Close ABDC: 47
Camshaft Gear Attachment: 1-Bolt
Specifications
| SKU | 20-814-9 |
| Barcode # | 036584117896 |
| Brand | COMP CAMS |
| intake valve lift | 0.549 |
| Exhaust Valve Lift | 0.544 |
| Lifter Type | Hydraulic Roller |
| Advertised Exhaust Duration | 300 |
| Advertised Intake Duration | 292 |
| Cam Type | Hydraulic Roller |
| Exhaust Duration At .050 Inch Lift | 248 |
| Intake Duration At .050 Inch Lift | 242 |
| Lobe Separation | 110 |
| Camshaft Series | Xtreme Energy |
| Grind Number | XR292HR-10 |
| Basic Operating Rpm Range | 2,800-6,400 |
| Lifters Included | No |
| Valve Springs Required | Yes |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Billet Steel |
