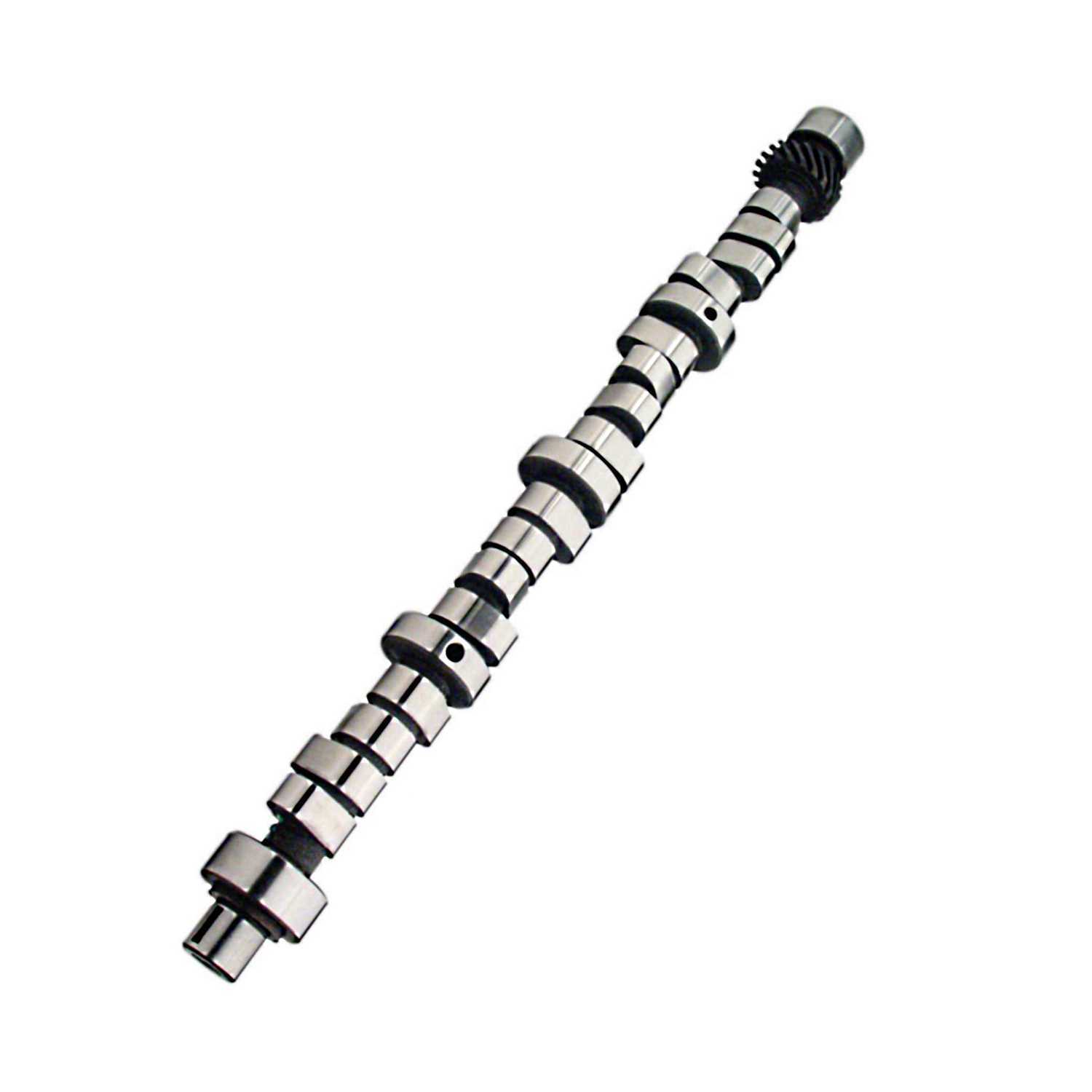

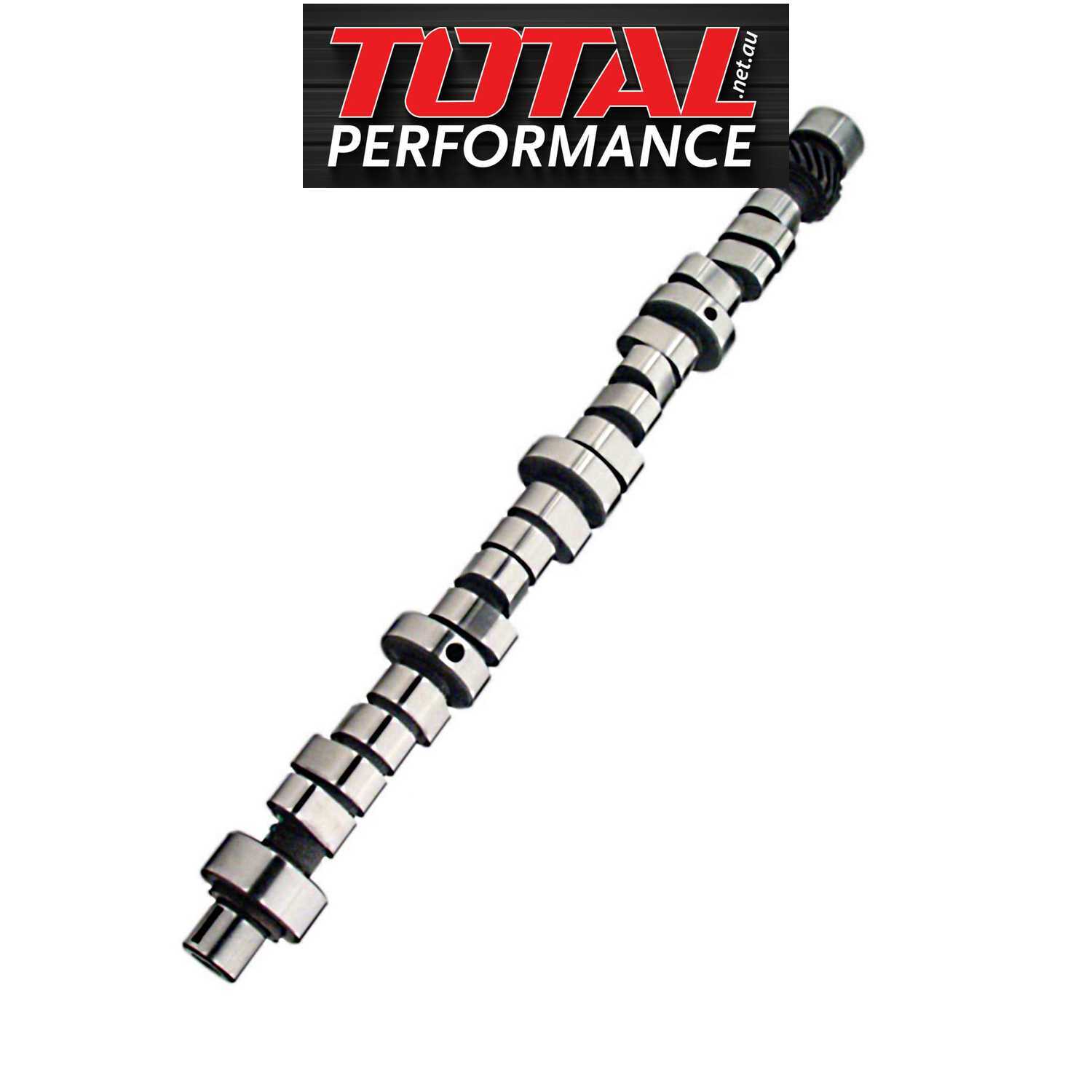

XR274HR-10 Xtreme Energy 224/230 LSA 110, Hydraulic Roller Camshaft suits Chrysler 318 340 360 Magnum Small Block, LA,

COMP CAMS Hydraulic Roller Chrysler 318 340 360 Camshaft

3.55-4.10 gears, 2200+ stall, 9:1 compression, headers, high performance street.

Engine Family     Chrysler 273-360 c.i. 8 Cylinder (1964-2002)

RPM Operating Range    1,800-5,800

Cam Type            Hydraulic Roller

Camshaft Series Xtreme Energy

Camshaft Gear Attachment          1-Bolt

Usage    Street/Performance

Advertised Intake Duration           274

Advertised Exhaust Duration       282

Intake Duration at .050 Inch Lift  224

Exhaust Duration at .050 Inch Lift               230

Intake Valve Lift 0.538

Exhaust Valve Lift              0.534

Lobe Lift Intake  0.359

Lobe Lift Exhaust              0.356

Lobe Separation                110

Intake Centerline              106

Valve Timing Lift                0.006

Exhaust Close ATDC         1

Intake Open BTDC            6

Exhaust Open BBDC        49

Intake Close ABDC            38

Lifter Style           Hydraulic Roller
