Description

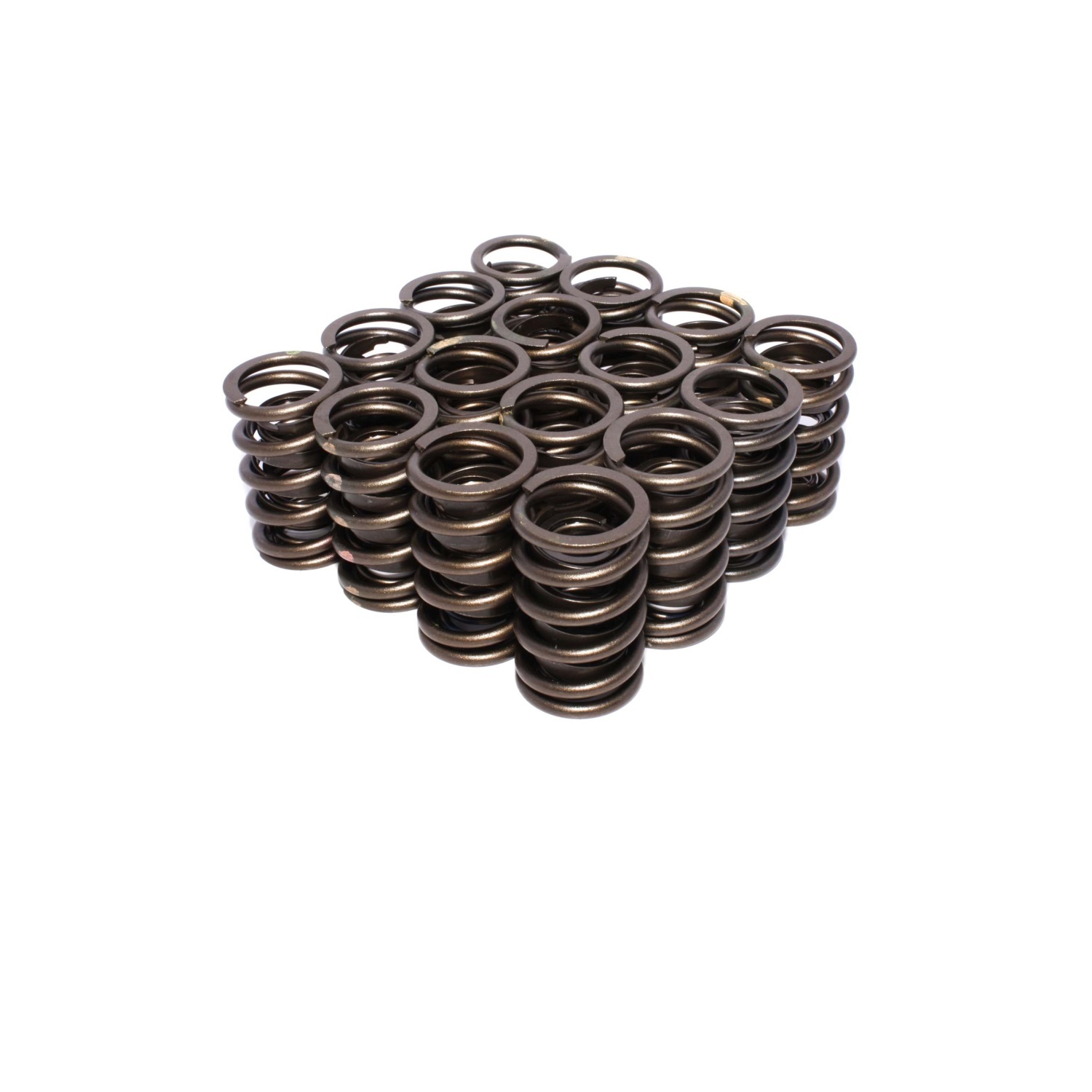

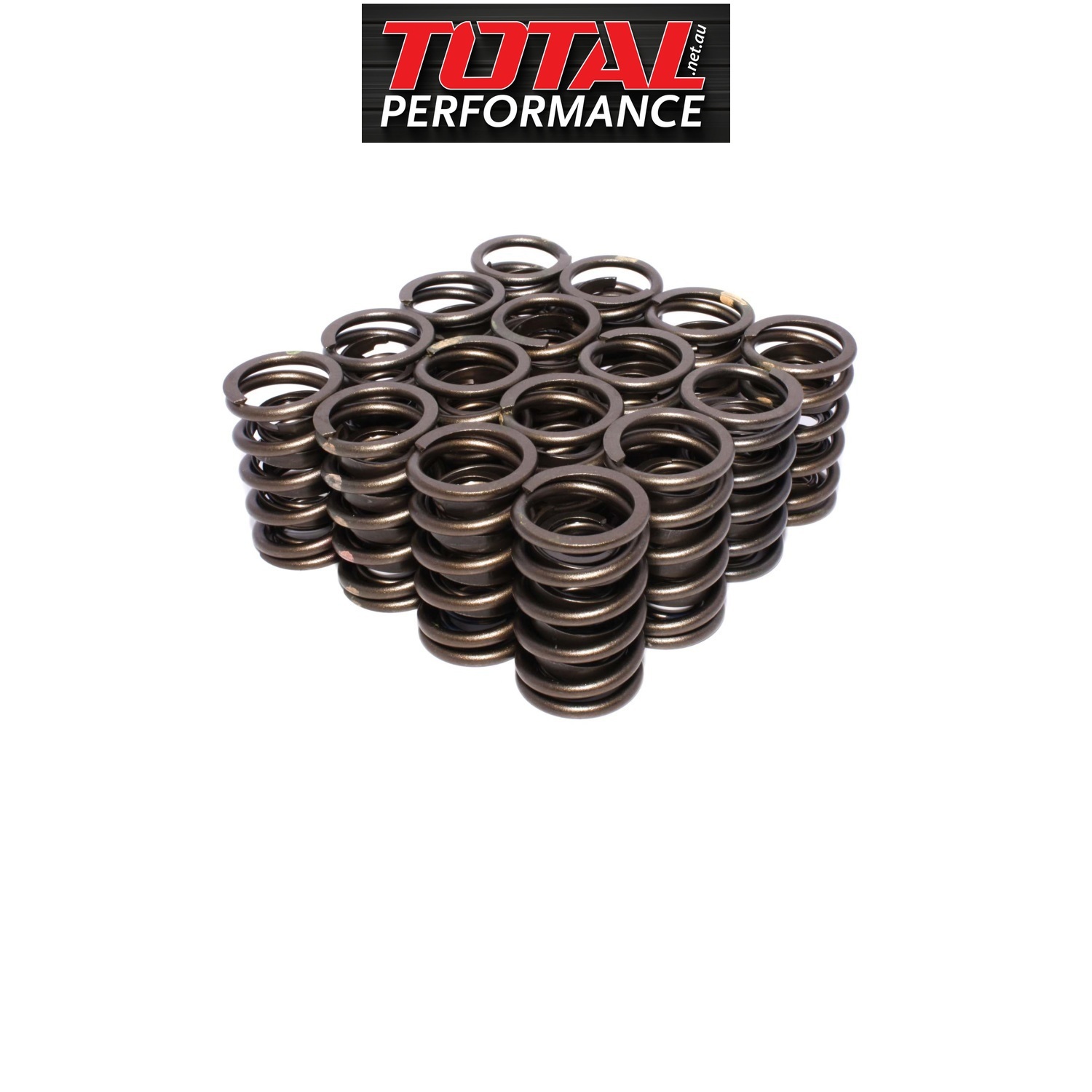

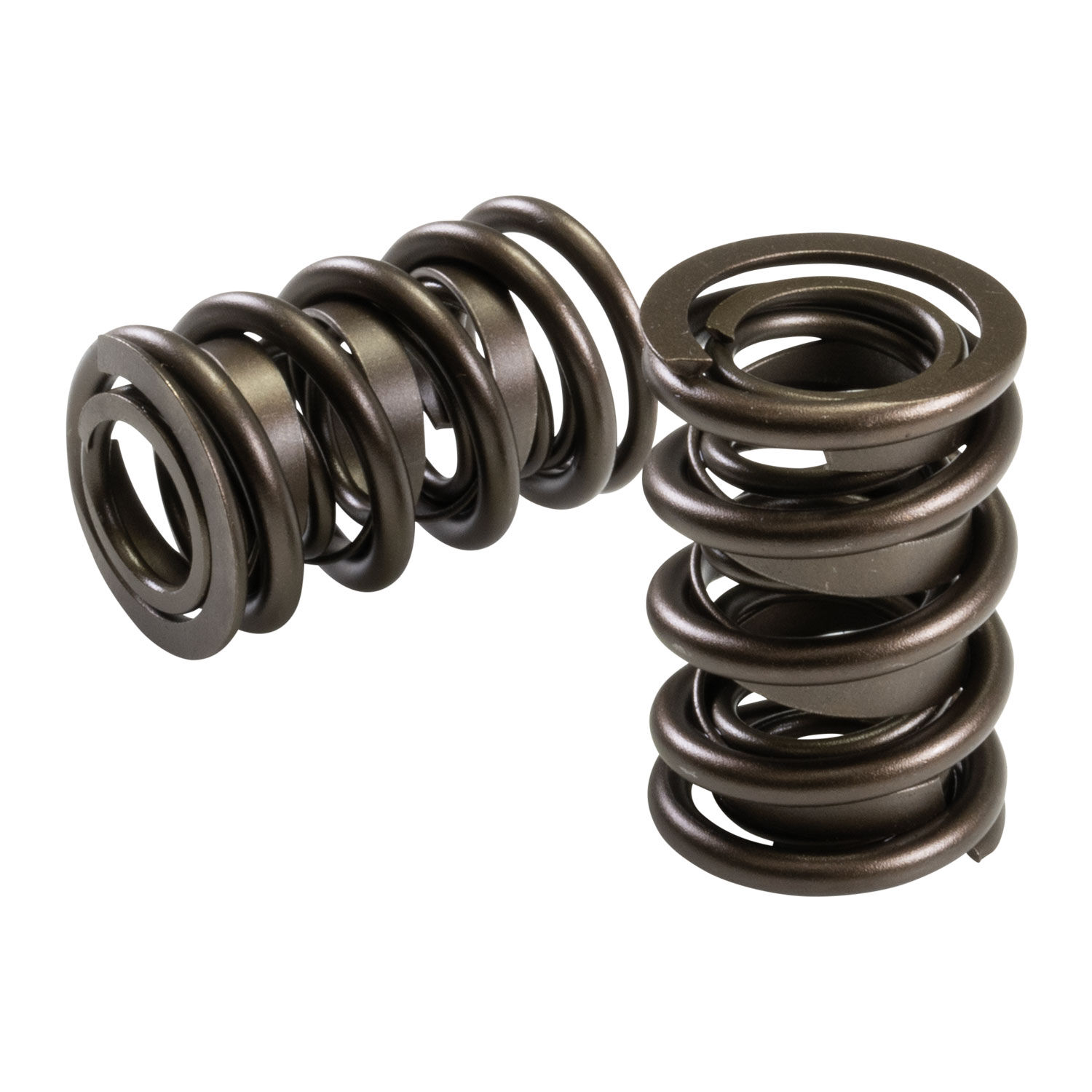

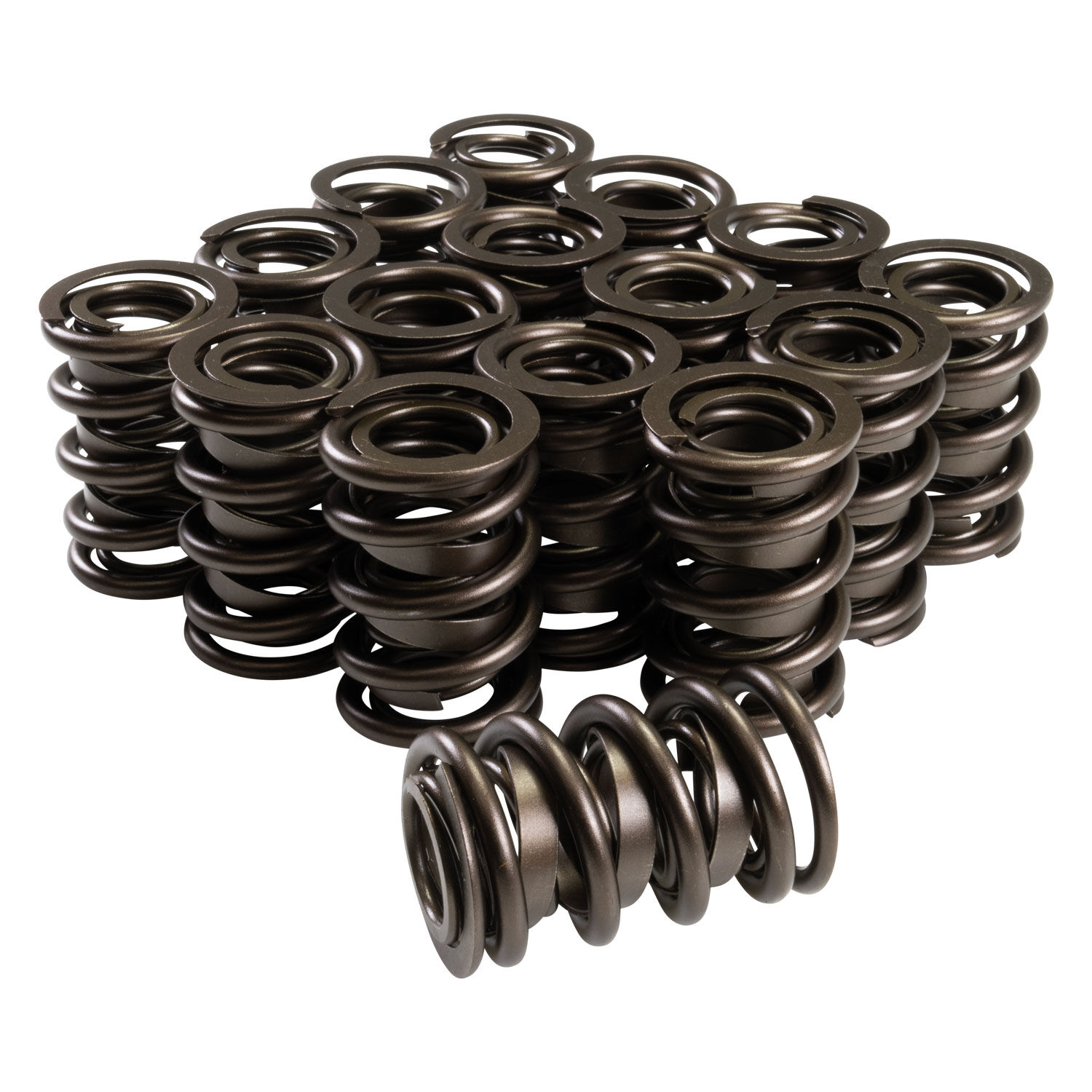

Engine Valve Springs fits 351 Cleveland* & 454 Big Block Chevy*
COMP Cams' new 26924 dual valve springs are a product of innovative design and superior craftsmanship. Engineered with state-of-the-art techniques and premium wire, they redefine reliability and consistency in the performance automotive aftermarket.
The 26924 is an excellent choice for flat tappet cams up to .600" lift or hydraulic roller cams up to .750” lift, with an installed height of 1.900”. They fit cylinder heads with at least a 1.520" spring pocket. Boasting an open load of over 420 pounds, these valve springs are geared toward hydraulic roller applications with heavy valve trains, ensuring exceptional performance and durability. The 26924 springs will service a wide variety of packages and applications. Whether you're seeking improved dynamics, enhanced valve control, or unmatched reliability, we have the valve springs to deliver the perfect solution. Elevate your engine's dependability and confidence on the road with COMP Cams valve springs.
*Cast Iron cylinder heads will require machine work to accept these dual valve springs.
Max Lift 0 .800
Installed Height 1.900
Coil Bind Height 1.040
O.D. of Outer 1.519
I.D. of Inner 0.779
I.D. of Outer 1.150
Spring Style Double
Spring Rate 376lbs/in
Damper Yes
Load at Installed Height 120
Load at Open Height 421
Open Height 1.100 in
Specifications
SKU | 26924-16 |
Barcode # | 036584271840 |
Brand | COMP CAMS |
Seat Height | 1.9 |
Damper | Yes |
Seat Pressure | 112 |
Outer Spring Outside Diameter | 1.509 |
Outer Spring Inside Diameter | 1.125 |
Number Of Springs | 2 |
Inner Spring Inside Diameter | 0.697 |
Valve Spring Series | Performance Street |
Coil Bind Height | 1.175 |
Spring Rate | 347 |
