STROKER KIT SBF FORD WINDSOR 347W 302W STROKER I BEAM 5.400" FORGED PISTONS [Piston Bore Oversize: 0.030"]
or 4 payments of $721.60 with
Info
*Free shipping on orders over $200
Description
Scat Stroker kit - Ford 347 Windsor
Cast 9000 series crank with Pro Stock I-Beam Connecting Rods and Autotec/Racetec Pistons & Rings.
External Balance Type - 28oz

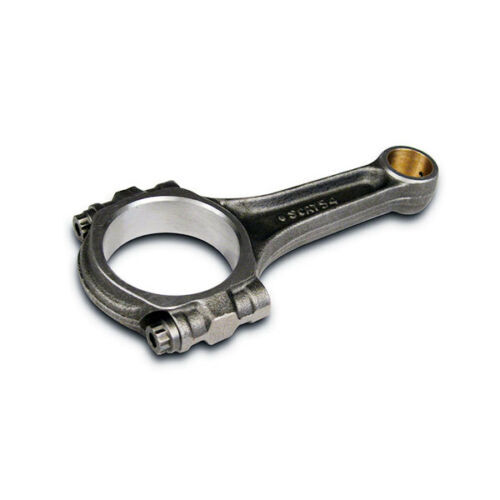

Scat Pro-Stock I-beam connecting rods incorporate all of the best features possible for an I-beam rod, including some strength-adders found in H-beam designs. They are profiled with clearance for long stroke applications. These connecting rods feature a one-rib cap design for added strength and bearing support, and special hollow dowels with ARP cap screw bolts to greatly increase strength and horsepower capabilities.

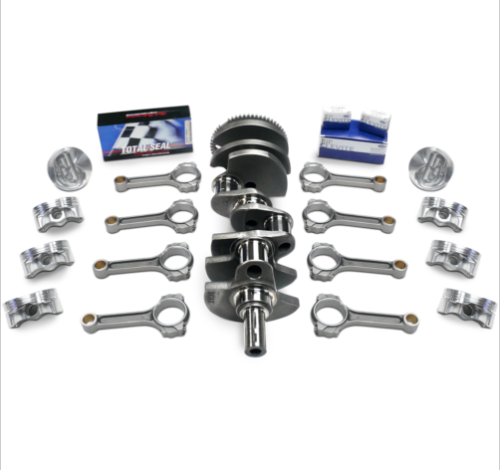

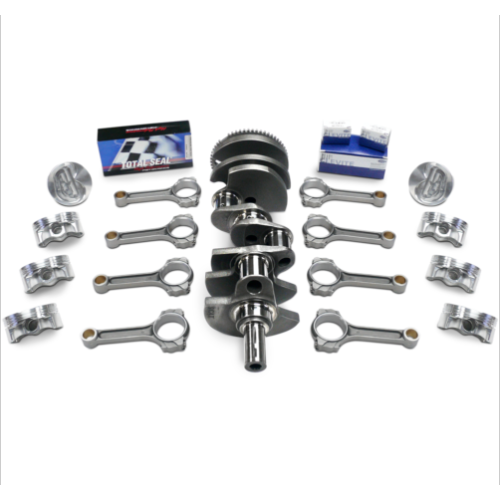

Whats in the Kit?

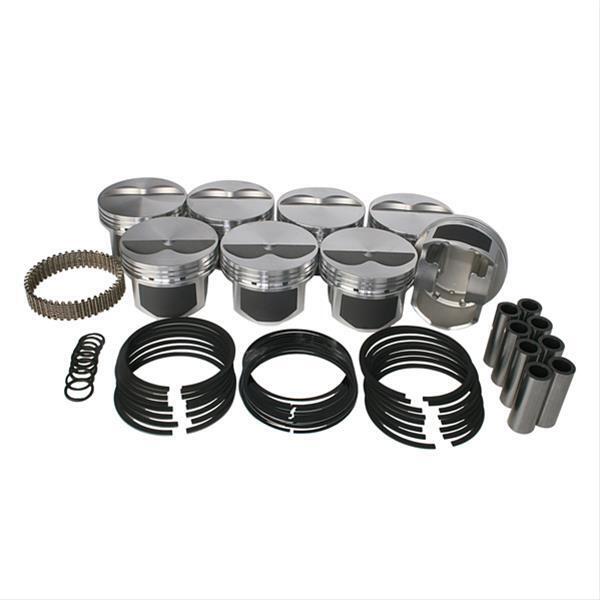

- Flat Top Autotec Street 4032 Forged Pistons + Hastings or Total Seal High Performance Rings. Made in USA.

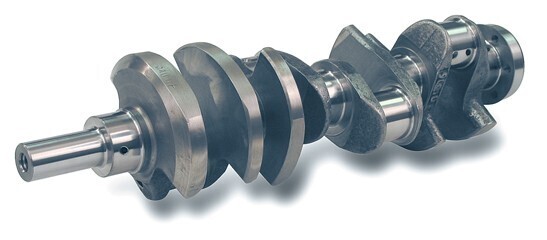

- SCAT Cast Stroker Crankshaft - External Balance
- SCAT Forged I beam Conrods with 7/16 Rod Bolts
Connecting Rod Length Center to Center (in.): 5.400 in.
Connecting Rod Beam Style: I-beam
Connecting Rod Material: Forged 4340 steel
Clearanced for Stroker: Yes - modifications may be required to Cylinder block.
Cap Retention Style: Cap screw
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 3/8 in.
Connecting Rod Bolt Material: 8740 chromoly steel
Specifications
| SKU | SCAT-347W-STR-9000KIT-CP |
| Brand | SCAT |
