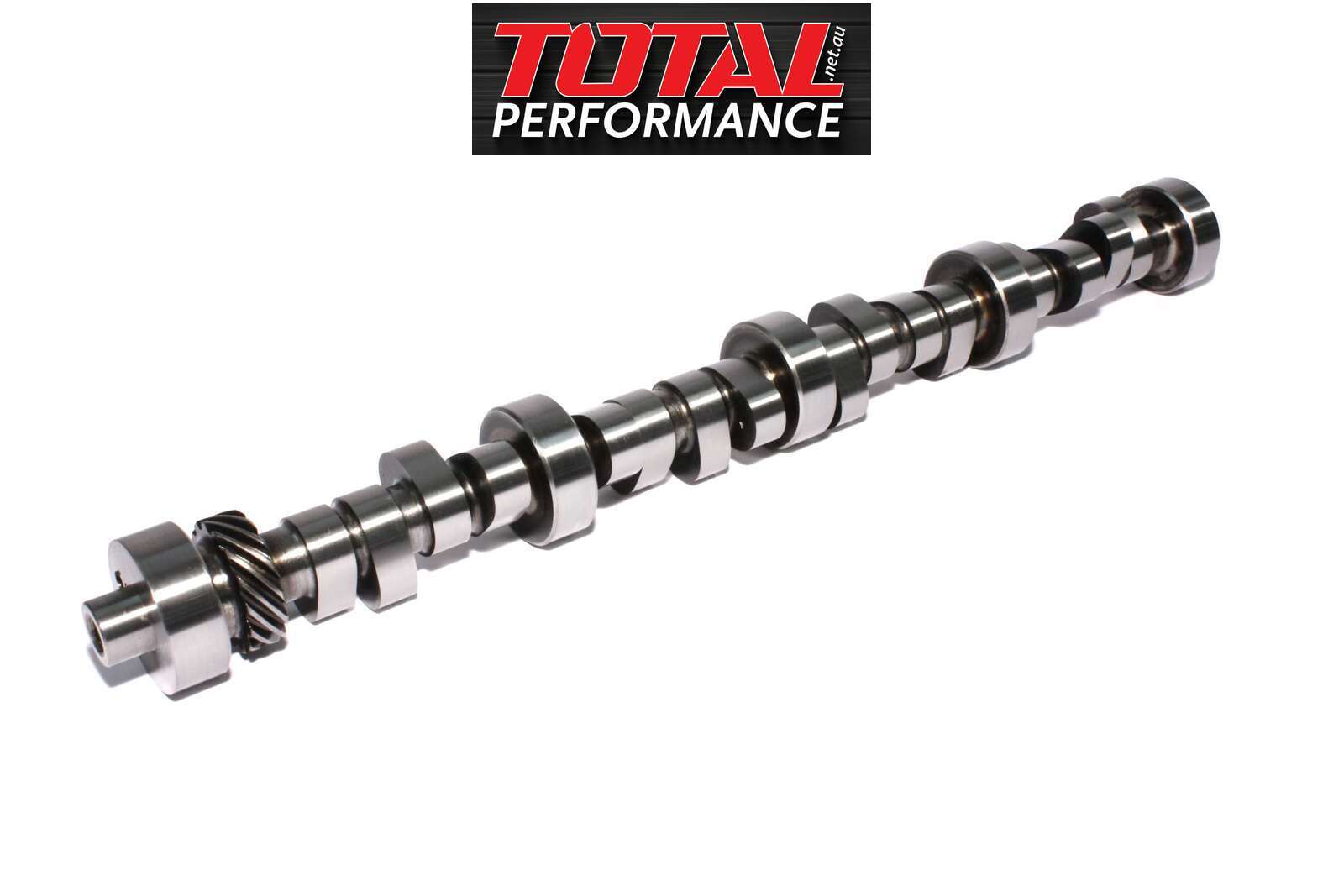

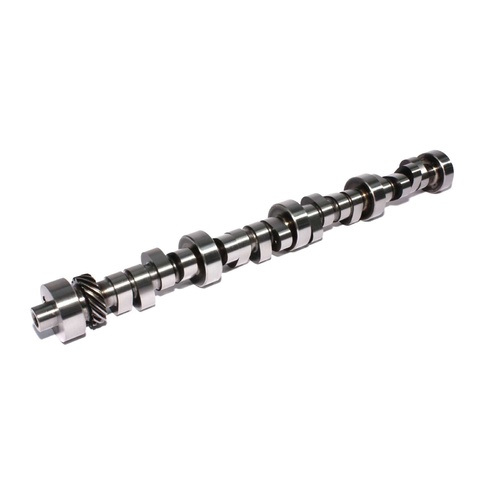

Ford SBF 351W Windsor Custom Solid Roller Camshaft

266/272 – .637”/.646” – 109 LSA – COMP Custom Grind

Serious Street/Strip Mechanical camshaft for serious Windsor builds.

This high-performance 351 Windsor solid roller camshaft is built for aggressive street/strip applications and suits both traditional SBF 351W engines and Clevor combinations running the Cleveland cylinder heads.

With 266/272 degrees @ .050” and .637”/.646” lift (1.6 rocker), this grind delivers strong mid-to-top-end power while maintaining a controlled, valvetrain-friendly lobe profile. Unlike ultra-aggressive race-only grinds, the ramp rates are managed to reduce valvetrain shock, making it suitable for high-end street-driven, endurance combinations.

In the right combination — cubic inch, compression, heads — this camshaft is capable of producing 700+ horsepower and RPM beyond 7500 RPM.

This is not a mild cam. It is built for engines with cylinder head flow, compression, converter, and gearing to match.

Want more options? View our Windsor Solid Roller Camshaft Category here!

Total Performance Custom Windsor Camshaft Specifications

• Duration @ .050: 266/272

• Valve Lift @ 1.6 Windsor Rocker: .637” / .646” (Gross)

• Valve Lift @ 1.73 Cleveland Rocker: .688” / .699” (Gross)

• Lobe Separation Angle: 109°

• COMP Cams camshaft manufactured in the USA to Total Performance specifications

• Recommended Valve Springs: DRP-8500P-SBKIT - click this link
