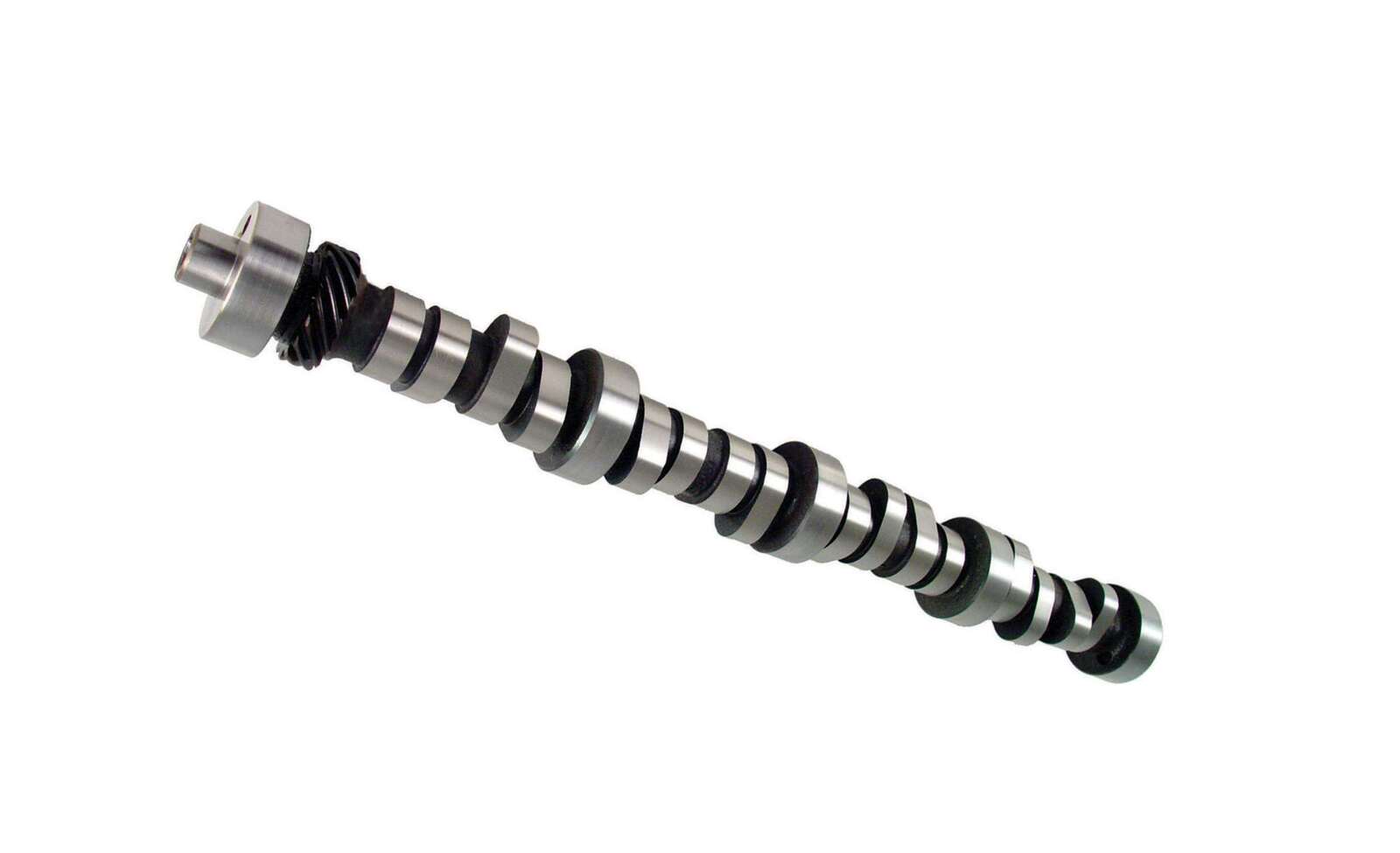

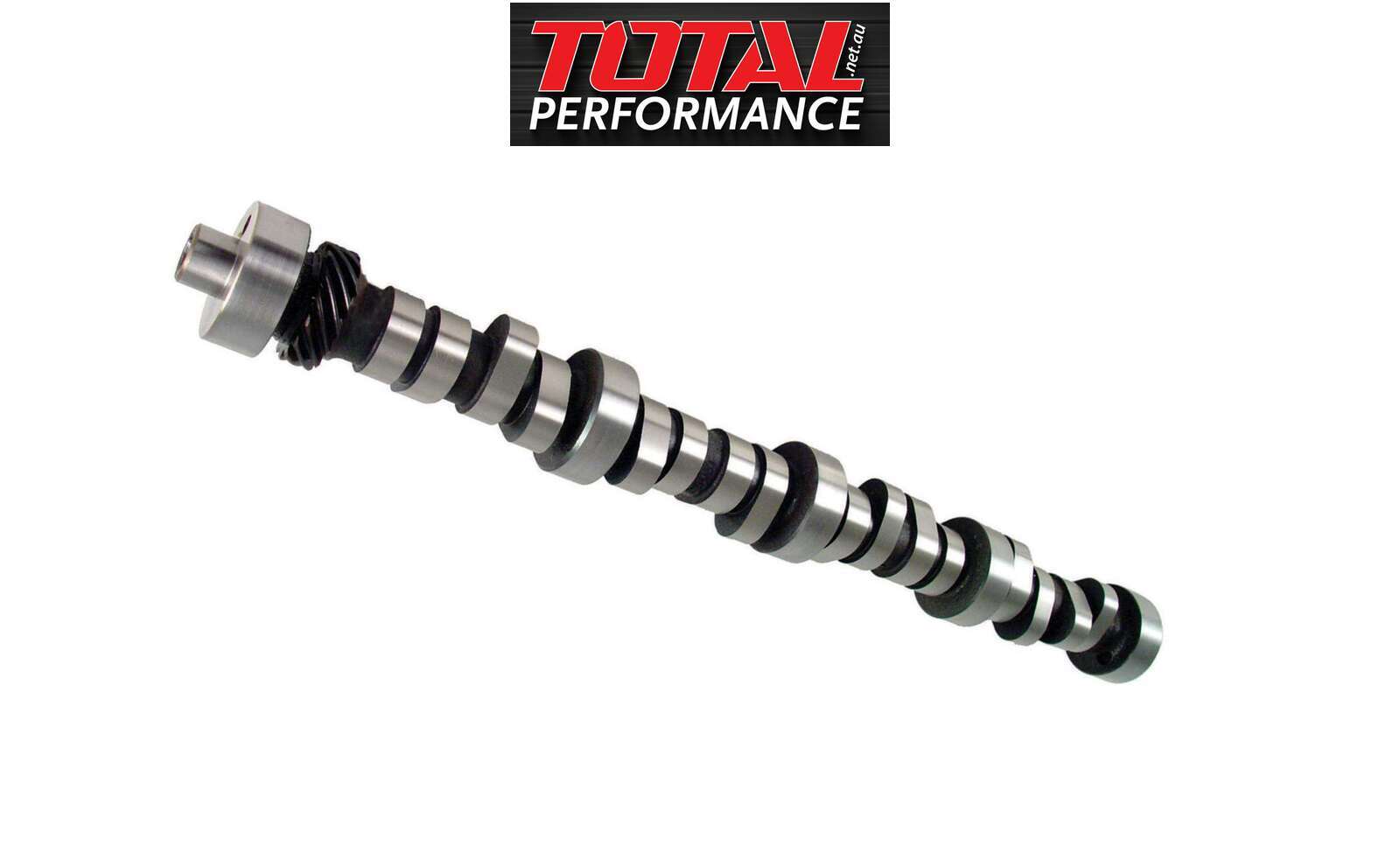

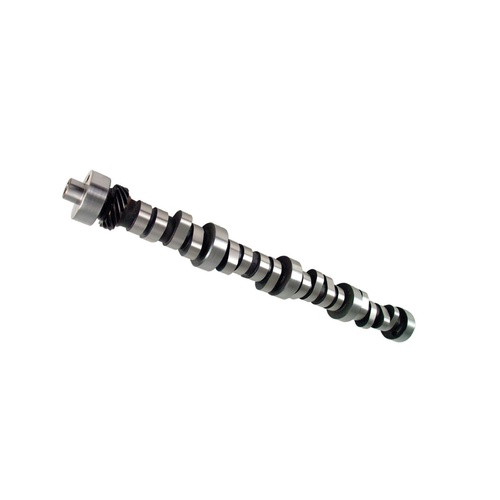

XR286R Xtreme Energy 248/254 LSA 110 Solid Roller Camshaft Ford 302W 351W Windsor SBF
RPM Range: 3000 - 7000 Street Roller
Description
Comp Cams Ford Windsor Solid Roller Street/Race camshaft.
Good in weekend warrior with 3000+ stall. Needs aftermarket intake and exhaust with low gears.
Engine Family: Ford 351W 8 Cylinder (1969-1996)
RPM Operating Range: 3,000-7,000
Grind Number: XR286R
Cam Type: Solid Roller
Lifter Style: Solid Roller
Camshaft Series: Xtreme Energy
Usage: Street/Performance
Advertised Intake Duration: 286
Advertised Exhaust Duration: 292
Intake Duration at .050 Inch Lift: 248
Exhaust Duration at .050 Inch Lift: 254
Intake Valve Lift: 0.614
Exhaust Valve Lift: 0.621
Lobe Lift Intake: 0.385
Lobe Lift Exhaust: 0.389
Lobe Separation: 110
Intake Centerline: 106
Exhaust Close ATDC: 32
Intake Open BTDC: 37
Exhaust Open BBDC: 80
Intake Close ABDC: 69
Camshaft Gear Attachment: 1-Bolt
Specifications
| SKU | 35-772-8 |
| Barcode # | 036584058960 |
| Brand | COMP CAMS |
| intake valve lift | 0.614 |
| Exhaust Valve Lift | 0.621 |
| Lifter Type | Solid Roller |
| Advertised Exhaust Duration | 292 |
| Advertised Intake Duration | 286 |
| Cam Type | Solid Roller |
| Exhaust Duration At .050 Inch Lift | 254 |
| Intake Duration At .050 Inch Lift | 248 |
| Lobe Separation | 110 |
| Camshaft Series | Xtreme Energy |
| Grind Number | XR286R |
| Basic Operating Rpm Range | 3,000-7000 |
| Lifters Included | No |
| Valve Springs Required | Yes |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Austempered Ductile Iron |
