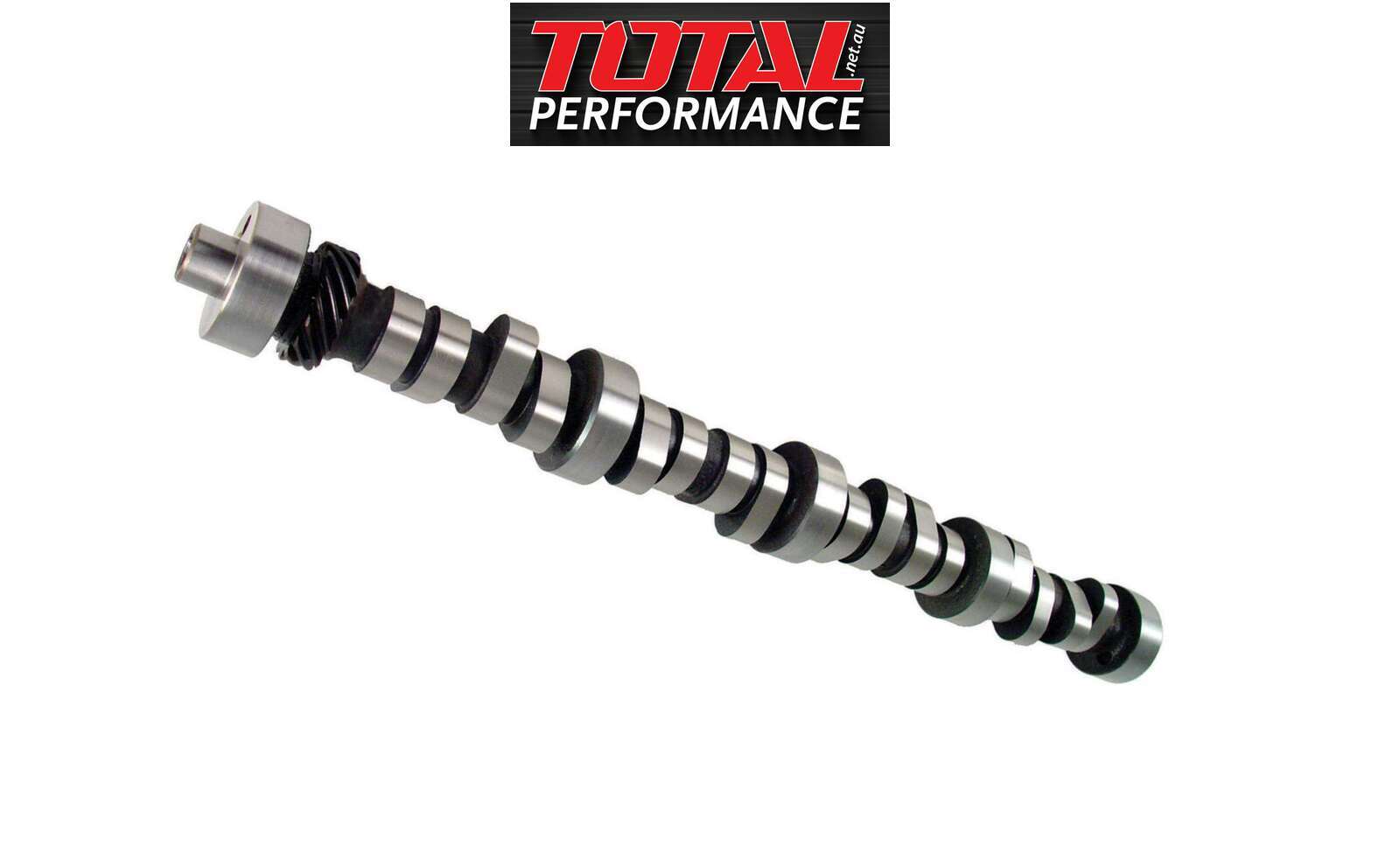

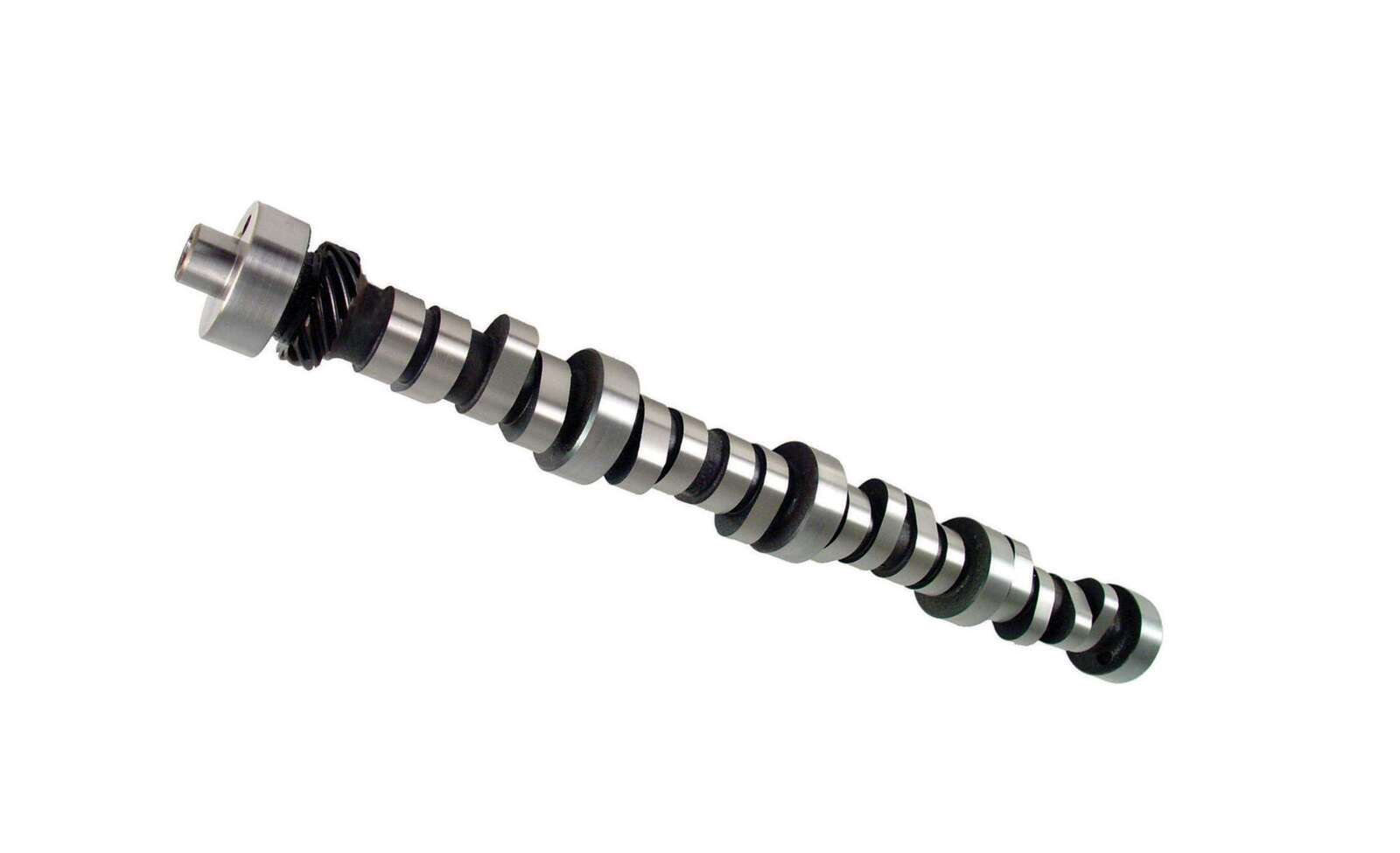

35-771-8 Xtreme Energy 242/248 LSA 110 Solid Roller Camshaft Ford 351W Windsor.
RPM Range: 2,500-6,500
Description
COMP CAMS 242/248 Solid Roller Camshaft Ford 351W WINDSOR
Best camshaft in street machines with 2800+ stall, 10:1+ compression with 3.73-3.90 rear gears.
Engine Family:Ford 351W Windsor 8 Cylinder (1969-1996)
RPM Operating Range: 2,500-6,500
Grind Number: XR280R
Cam Type: Solid Roller
Lifter Style: Solid Roller
Camshaft Series: Xtreme Energy
Usage:Street/Performance
Advertised Intake Duration: 280
Advertised Exhaust Duration: 286
Intake Duration at .050 Inch Lift: 242
Exhaust Duration at .050 Inch Lift: 248
Intake Valve Lift: 0.608
Exhaust Valve Lift: 0.614
Lobe Lift Intake: 0.381
Lobe Lift Exhaust: 0.385
Lobe Separation: 110
Intake Centerline: 106
Exhaust Close ATDC:29
Intake Open BTDC:34
Exhaust Open BBDC:77
Intake Close ABDC:66
Camshaft Gear Attachment:1-Bolt
Specifications
| SKU | 35-771-8 |
| Barcode # | 036584058977 |
| Brand | COMP CAMS |
| intake valve lift | 0.608 |
| Exhaust Valve Lift | 0.614 |
| Lifter Type | Solid Roller |
| Advertised Exhaust Duration | 286 |
| Advertised Intake Duration | 280 |
| Cam Type | Solid Roller |
| Exhaust Duration At .050 Inch Lift | 248 |
| Intake Duration At .050 Inch Lift | 242 |
| Lobe Separation | 110 |
| Camshaft Series | Xtreme Energy |
| Grind Number | XR280R |
| Basic Operating Rpm Range | 2,500-6,500 |
| Lifters Included | No |
| Valve Springs Required | Yes |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Austempered Ductile Iron |
