SKU: DRP-DSKIT-LSPLUS

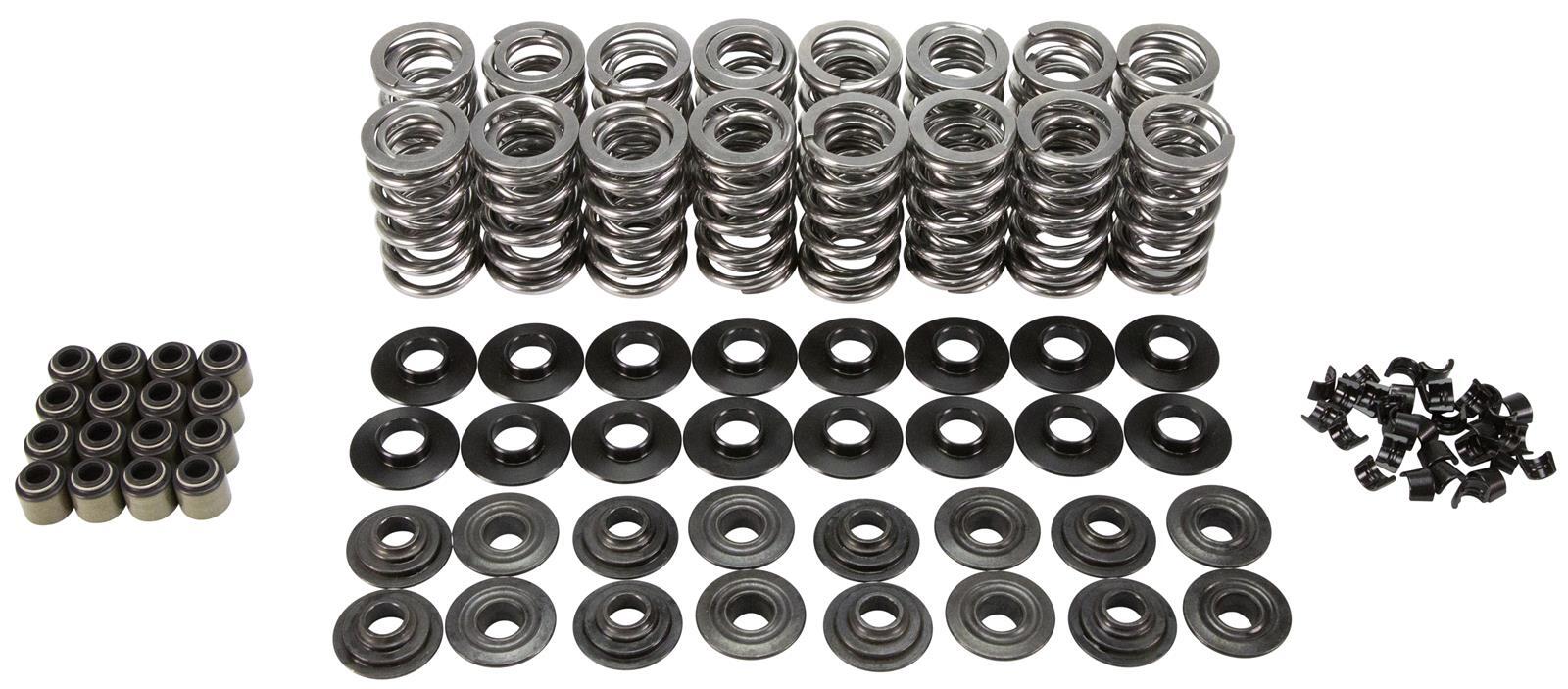

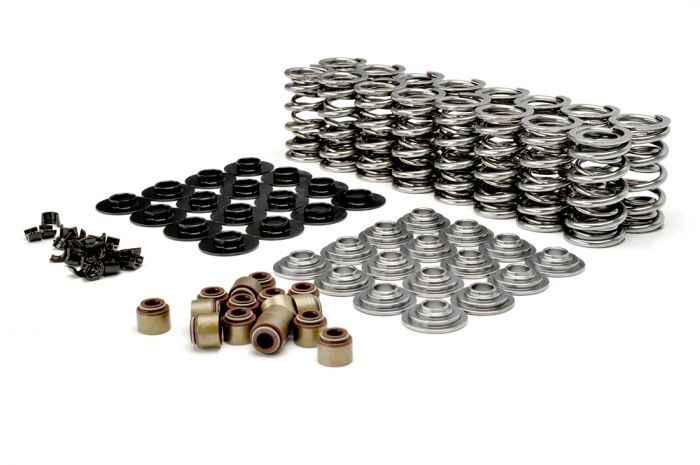

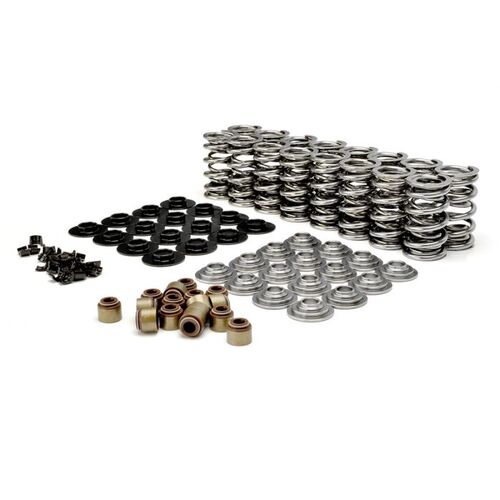

LS Dual Valve Spring Kits Steel Retainer LS1 LS2 LS3 0.740" Max Lift 8mm valve

RPM KIT - 8mm Valve.

$942.70

or 4 payments of $235.68 with Info

SOLD OUT

Description

DRP V8 DUAL SPRING KIT  0.740" Max LIFT

SUITS MAJORITY OF AFTER MARKET V8 ALLOY HEADS USING THE 11/32" VALVE.

Chevy 350, Ford Windsor 302W and 351W aftermarket heads.

STEEL RETAINERS KIT

 High Quality Polished Spring kit

The kit includes - all items made in USA.

  • Dual Springs - PAC SPRINGS - made in USA
  • Comp Cams Retainers suit 7° locks and 11/32" traditional valve stem
  • Comp Cams Locators for Aftermarket guides 0.570" OD
  • DRP Valve seals - Viton - suit 11/32" traditional valve stem and 0.530 top of guide - metal body.
  • Comp Cams Locks - 7° Machined (not cast) suit 11/32" valve stem - single groove.


Spring specs are as follows:

170 lbs @ 1.800”

450 lbs @ 1.115”

Coil bind @ 1.000”

Max Lift 0.740" @ 060" to coil bind.

408 lbs spring rate

BE ADVISED: IMAGE MAY DIFFER FROM ACTUAL PRODUCT.

Specifications

SKU DRP-DSKIT-LSPLUS
Brand DRP
Seat Height 1.835
Seat Pressure 129
Coil Bind Height 1.1
