SKU: DRP-8374S-308KIT

Streetline Dual Valve Springs Kits Hydraulic Roller Fits Holden 304, 308 cast iron heads w/ 11/32" valve,

Street Hydraulic Roller Kit - Max lift 0.730" - 11/32"

$485.93

or 4 payments of $121.48 with Info

IN STOCK  FREE SHIPPING

Description

Detroit Racing Products - Dual Valve Springs Kit - Streetline Series

Fits Holden 253, 304 & 308 Cast iron cylinder heads with 11/32" valves.*

Upgrade & modernise your 308 Holden* with these small OD, light weight valve springs kits.

DRP Streetline dual valve springs increase RPM & power to your build without breaking your budget.

Engineered for the street and built to perform, it’s the perfect choice for street machines, cruisers, and classic V8s that take the punishment of everyday performance.

Ideal for street use and moderate race applications, Streetline parts are manufactured from premium-grade materials, engineered for reliability, and priced for value!

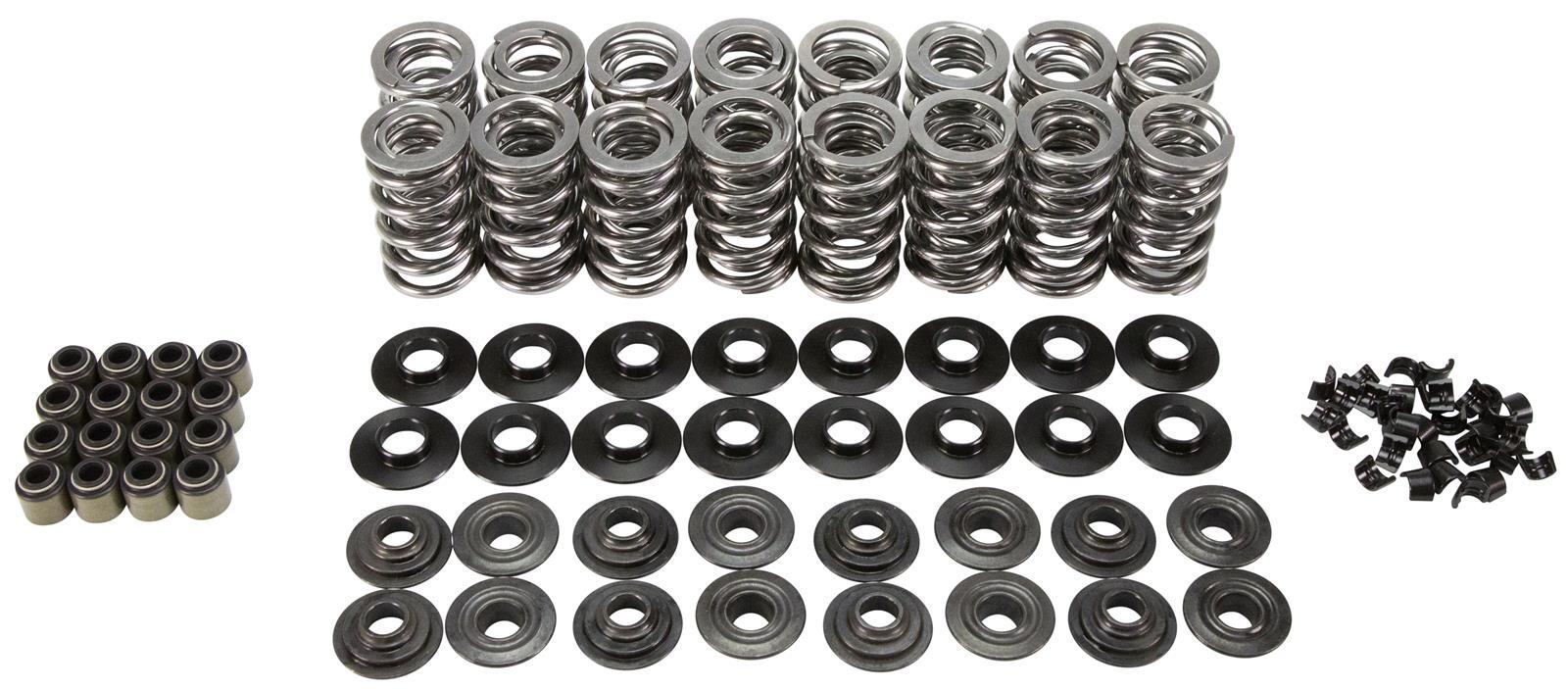

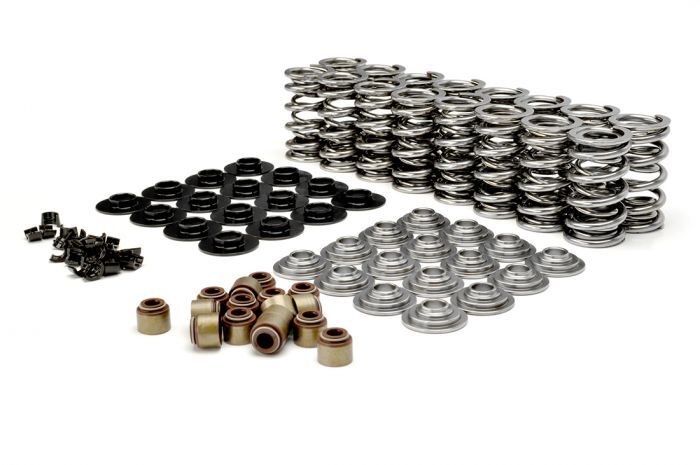

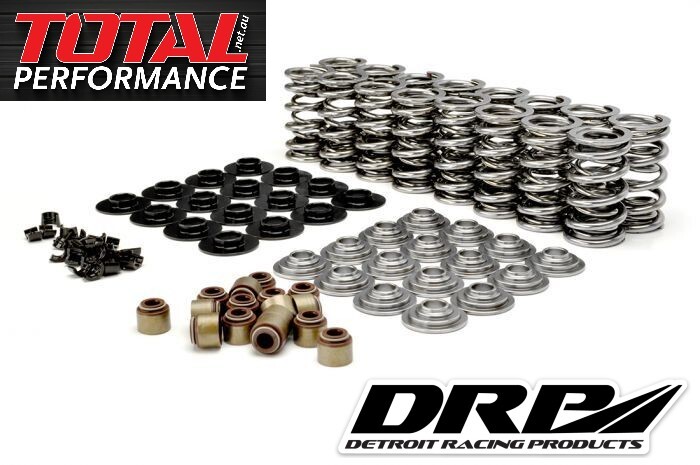

What's in the Kit?

  • PAC Dual Springs - DRP-8374S-16
  • Comp Cams Steel Retainers - 7 Deg Chromoly
  • Comp Cams Street Locks - 7 Deg / 11/32" Valve square groove
  • Comp Cams Valve Stem seals: Teflon push-on type - 0.530" / 11/32" Valve
  • *No locator - use the cast iron cylinder head

*Note for Holden 253, 304 & 308:

  • Holden cast iron V8 heads will need spring pads machined down to fit a 1.800" installed - use Comp Cams cutter #4716CPG - Cutter is 1.320" OD x 0.630" ID
  • Or use cutter Comp Cams# 4672 1.340" OD with .560" ID.
  • No Spring locator is included in this Kit as the guide will locate the spring. Use a steel shim as the base when getting your target spring installed height.

Installed Height: 1.800"

Seat Load: 145lbs @ 1.800" / 164lbs @ 1.750"

Spring Rate:   374 lbs / inch

Max Lift: .730" @ 060" safety.

Spring Height Inch Load lbs
1.950 89
1.900 108
1.850 126
1.800 145
1.750 164
1.700 182
1.650 201
1.600 220
1.550 238
1.500 257
1.450 276
1.400 294
1.350 313
1.300 332
1.250 351
1.200 369
1.150 388
1.100 407
1.000 Coil Bind

Made in USA.

BE ADVISED: IMAGE MAY DIFFER FROM ACTUAL PRODUCT.
