SKU: 12805

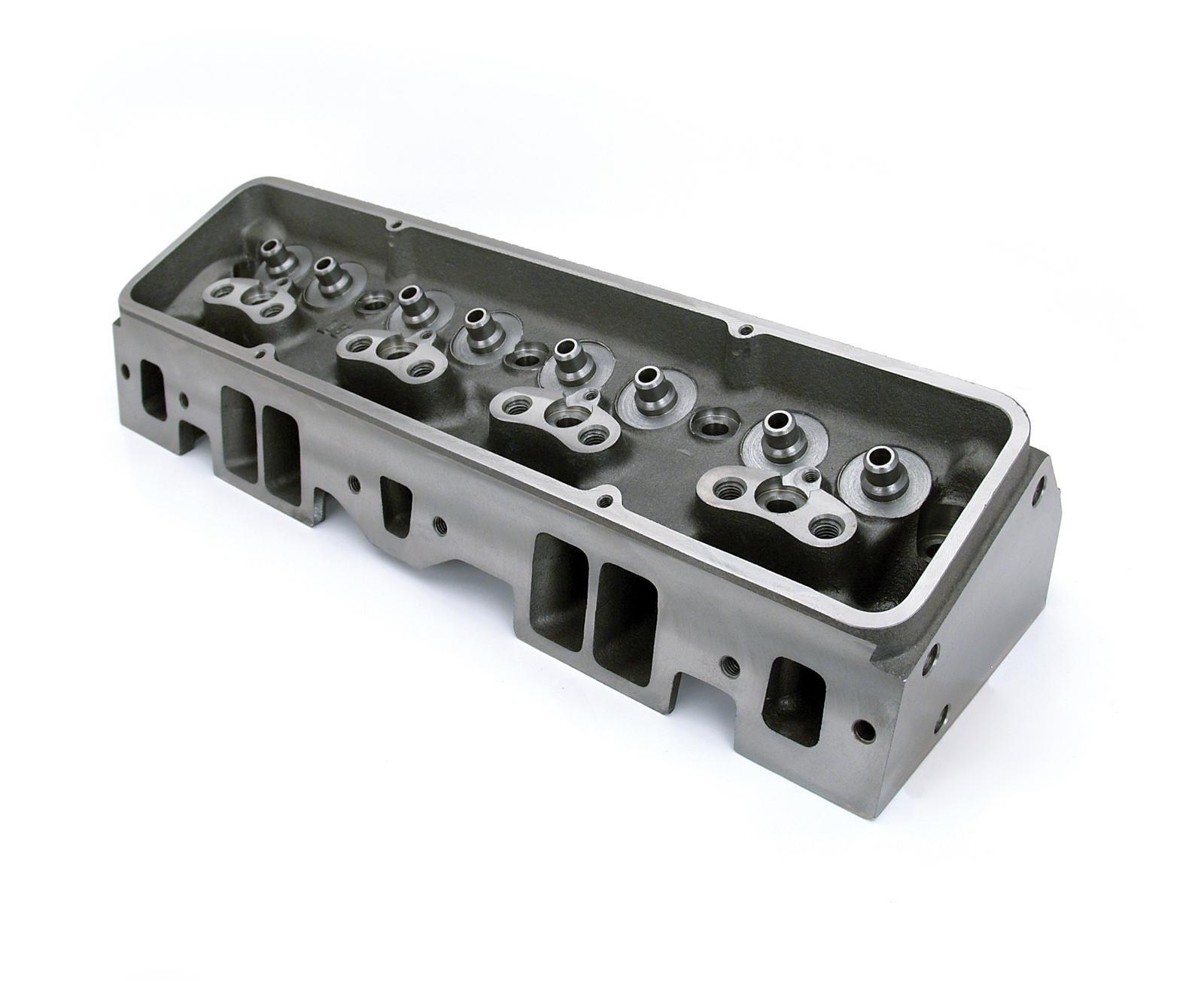

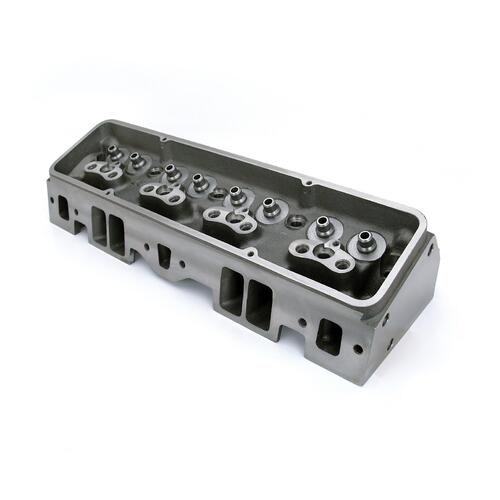

PAIR SBC CYLINDER HEAD CAST IRON 14 DEGREE PORTERS-PORT CHEVY EACH

UNPORTED - GUIDES NOT INSTALLED.

$1,562.00

or 4 payments of $390.50 with Info

Sold Out

Description

SOLD AS A PAIR

The Pro Action™ 14˚ Heads offer the largest volume runner of any SBC iron cylinder head on the market at 235cc with the capability to be sized up to 285cc. In addition, the rolled valve angle, high port intake opening and offset valve location provide the most airfl ow potential of any competitive performance cylinder head. The fl atter piston-to-valve angle nets a 47cc combustion chamber to generate high compression without a raised piston dome. The heads are available in three versions: standard “as cast”, P-Port with seats and guide holes machined, and P-Port without machined seats or guide holes. • Designed for use with Small Block Chevy circle track & NHRA Junior Fuel A Class nostalgia drag racing applications • Features fl atter piston-to-valve angle to deliver high compression without the need for a large piston dome • High intake port runner location provides line of sight to the valve, thereby increasing airfl ow & horsepower potential • 235cc intake runner volume capable of 285cc volume sizing

SERIES: PRO ACTION™

DESCRIPTION: 14° Small Block Chevy

Cylinder Heads;  Cast Iron; Angle Plug

APPLICATION: 350-421c.i. Recommended Iron-Mandated Circle Track & Drag Racing

VALVE GUIDES: Premium Bronze Material (NOT INSTALLED)

SPARK PLUGS: 14mm Thread, .708" Reach, Tapered Seat

Specifications

SKU 12805
Barcode # 036584182115
Brand RHS - Racing Head Service
