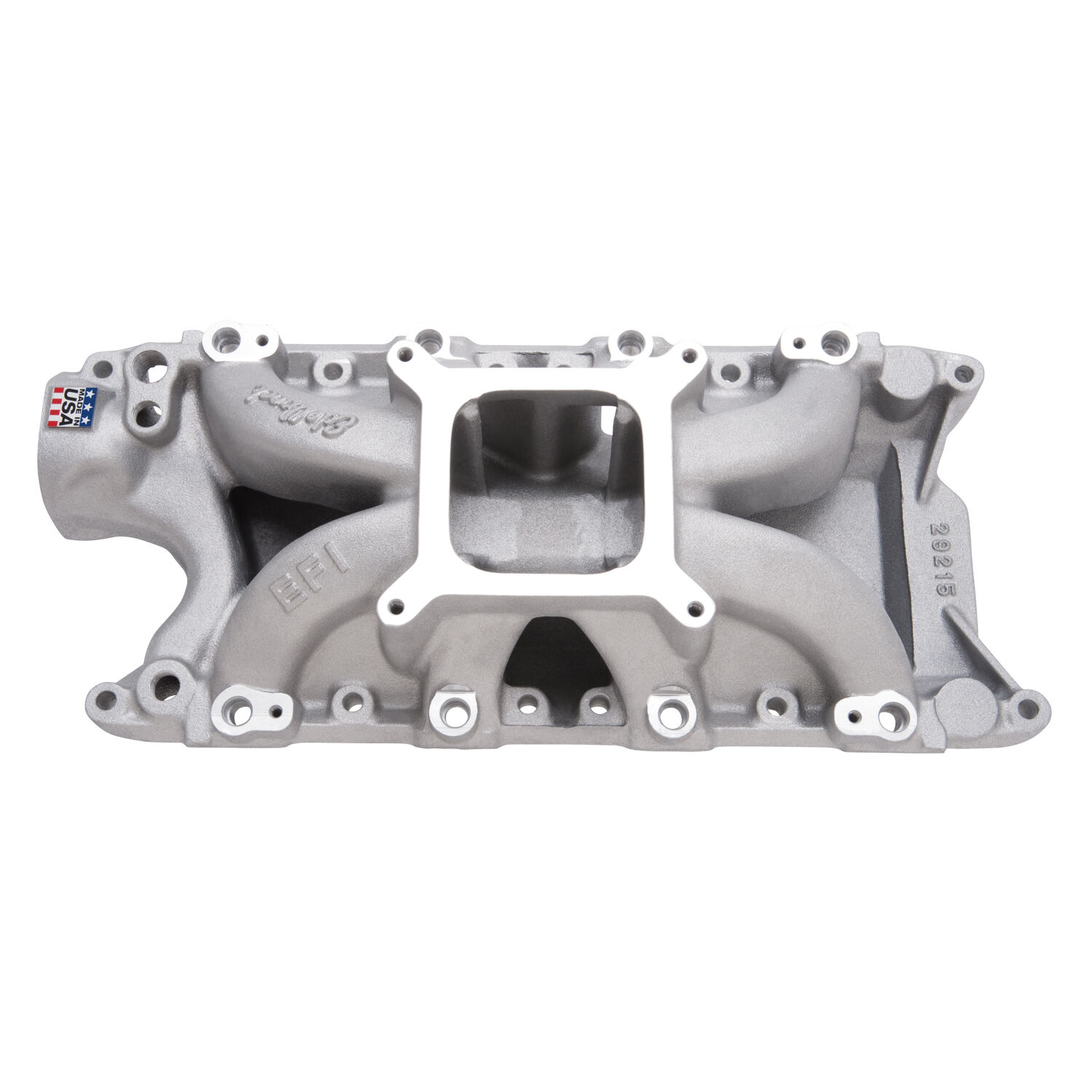

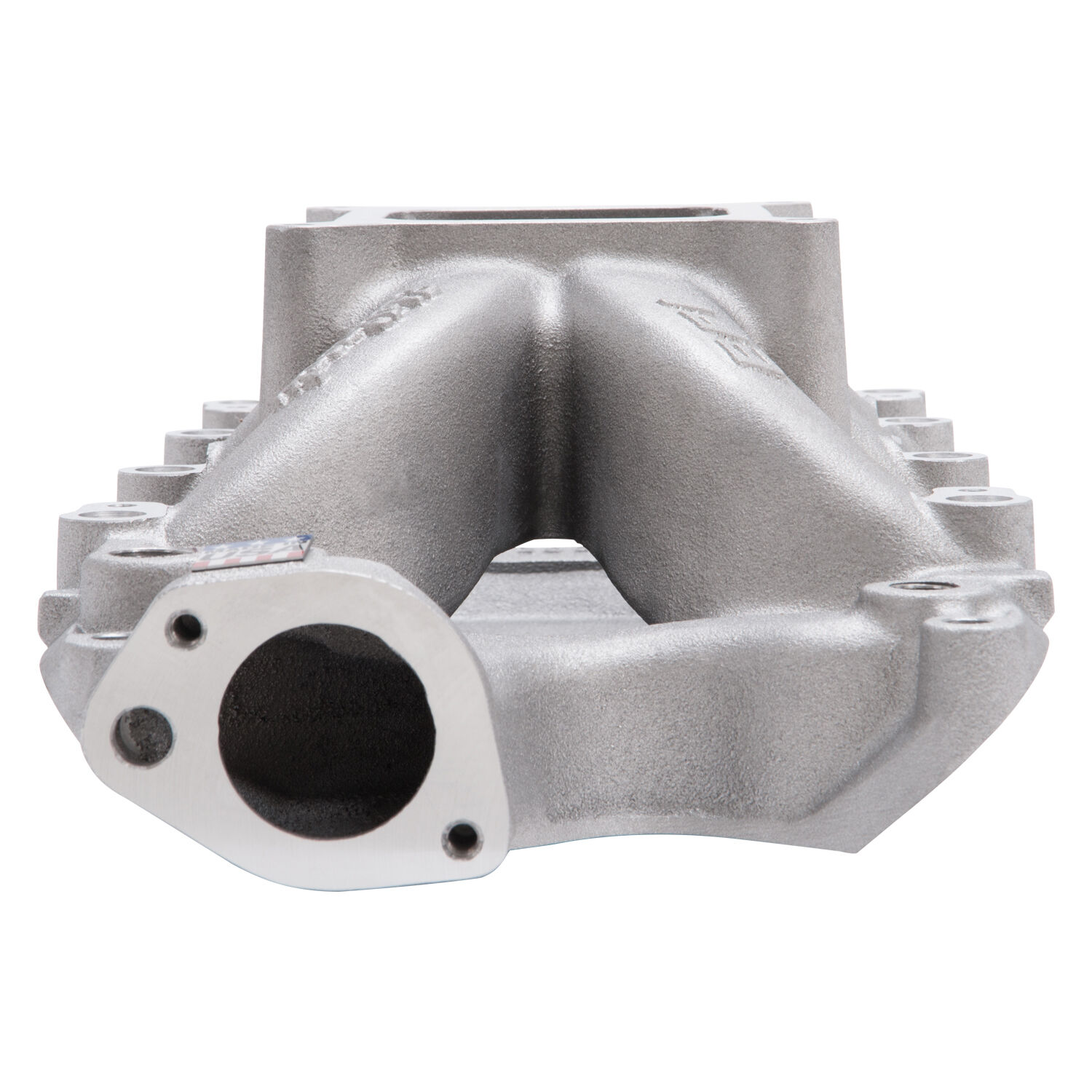

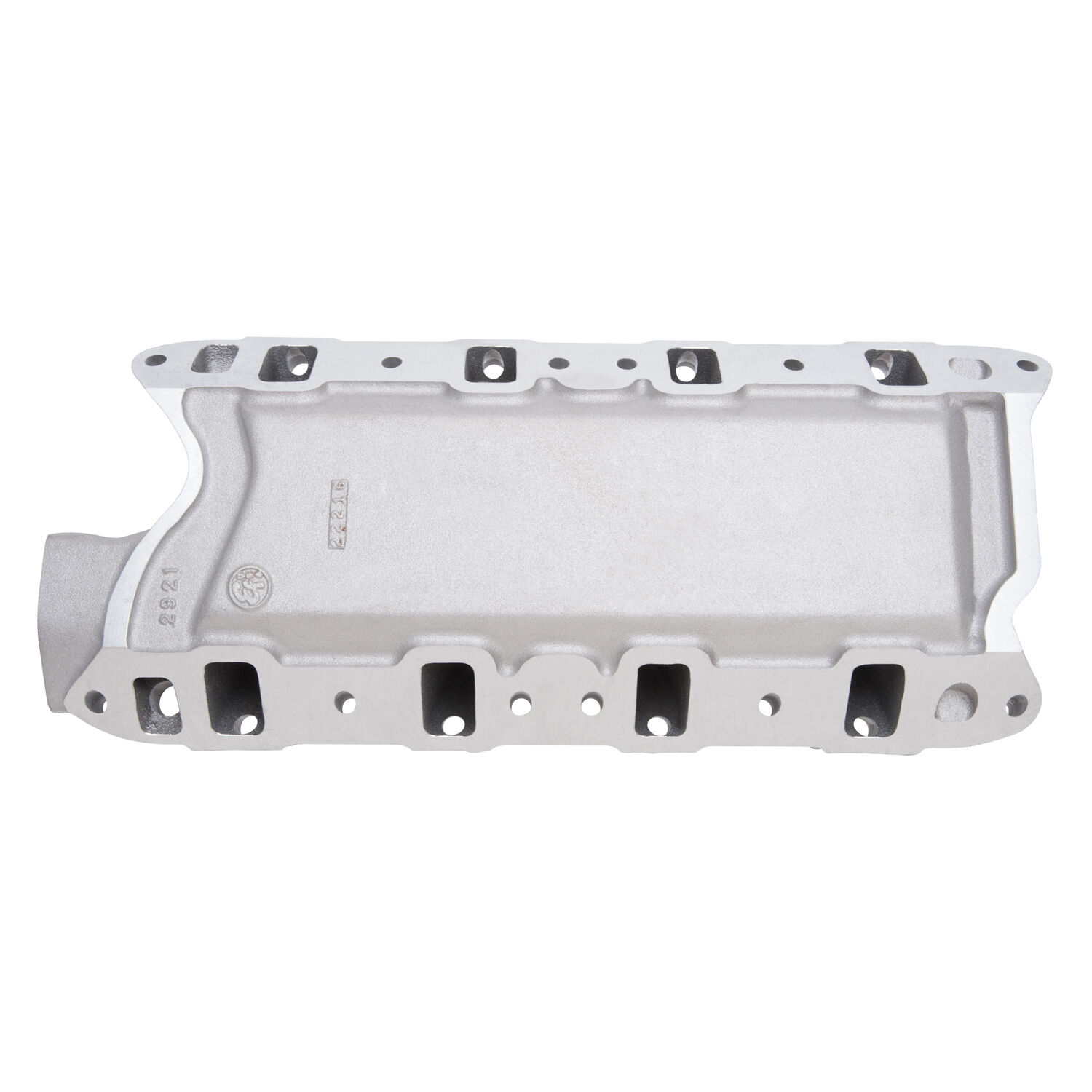

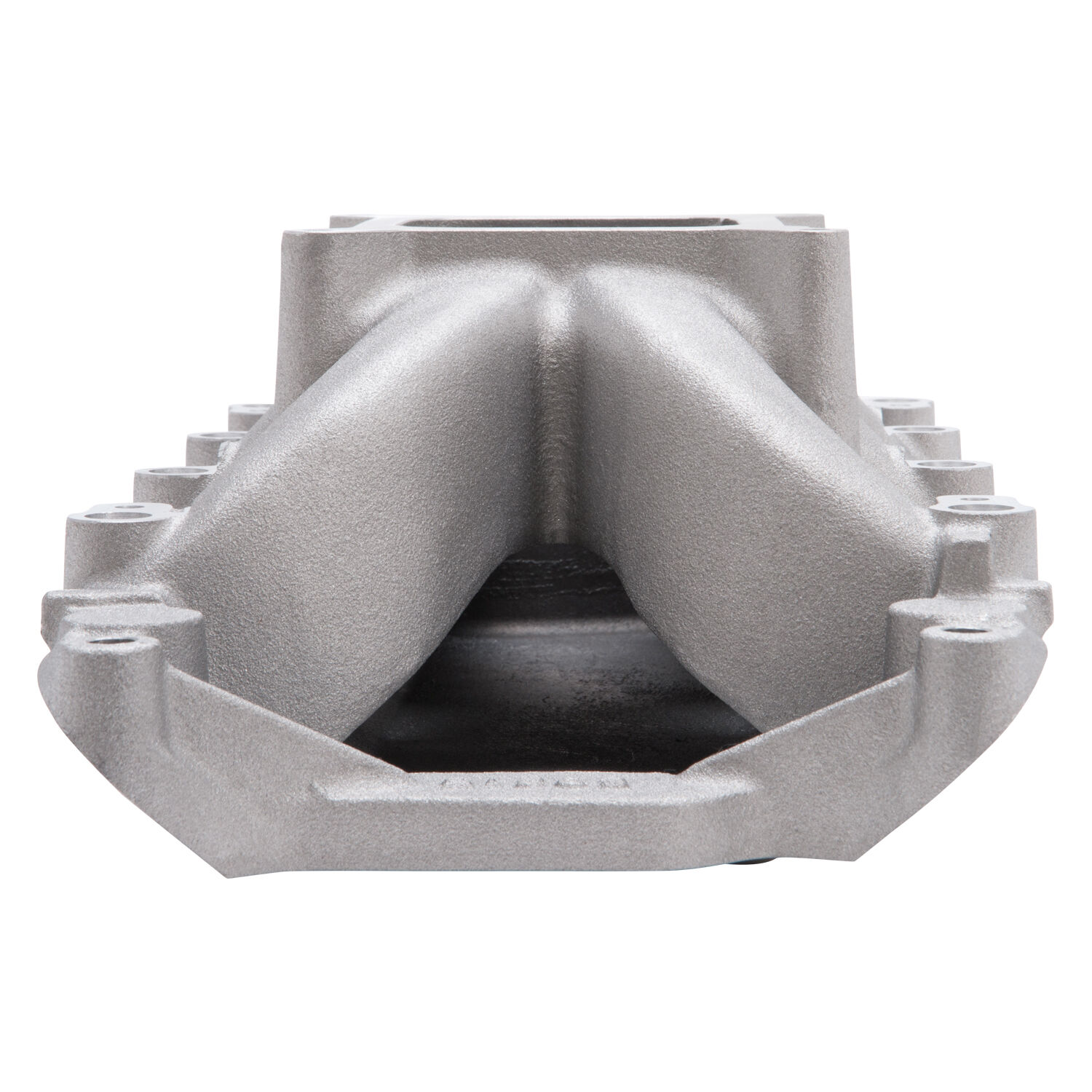

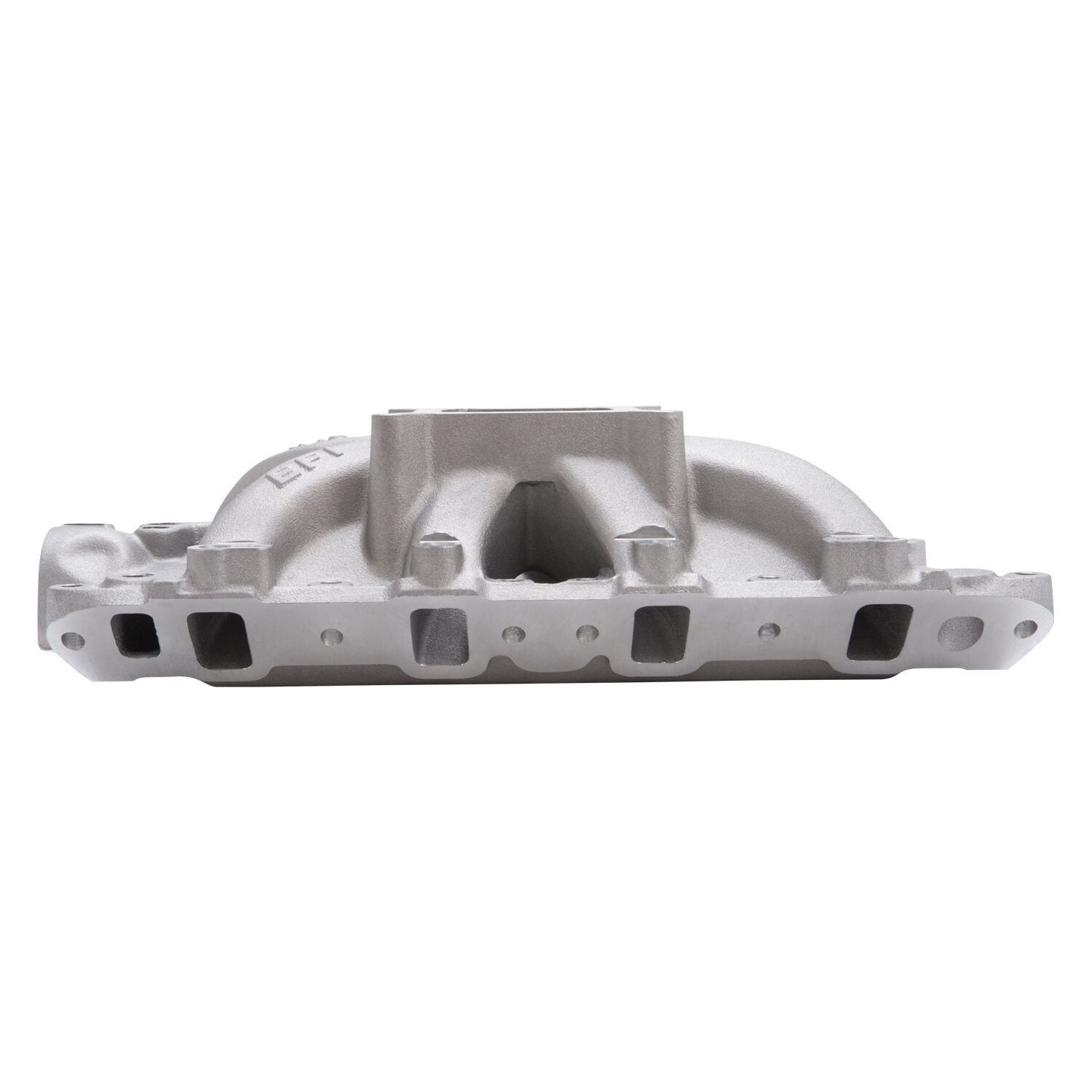

Ford 302W EFI, Single Plane Intake Manifold, Victor JR with EFI ports - Fits SBF, Small Block Ford 302 & 347W

Edelbrock ED29215 Victor Jr. 302 Windsor EFI Intake Manifold for Ford 302 & 347 stroker Small Block Ford V8.

Edelbrock part ED29215 Victor Jr. 302 EFI intake manifold is designed for use on the Ford Windsor 302 to 347 stroker competition engines using an aftermarket EFI system. This Single Plane Victor Jr. EFI also features bosses for rear water crossover. The Edelbrock Victor Jr. is an EFI single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds.

Edelbrock 29215 Specifications:

Engine Family Fits: 302 & 347 Windsor with the Small Block Ford 8.2" Deck (common 289-302W)

Material: Aluminium

Application EFI / Carburettor: Can fit both applications, has EFI provisions for a Fuel Rail, you will need Edelbrock # ED3625

RPM Range: 3500-8000

Single or Dual Plane: Single Plane type

Edelbrock Intake Series: Victor Junior / Victor Jr

Edelbrock 29215 Port Size: Port exit size at cylinder head is 1.08" x 1.90" with extra material to accommodate a 1.18" x 2.10" opening

NOTE: EFI Fuel Rail Kit "NOT" included.  Please see Edelbrock part ED3625
