Proline RPM Dual Valve Springs KIT fits 351C Cleveland & Chevy BBC 454. Hydraulic Roller 155 lbs@ 1.900" Small OD.
Premium Hydraulic Roller Valve Springs KIT - High RPM
Description

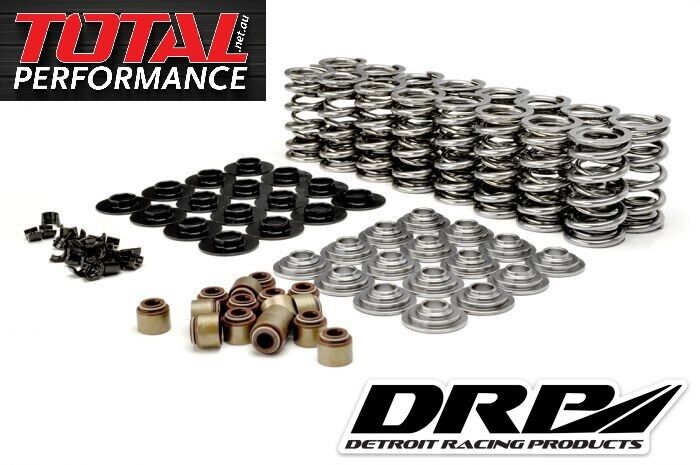

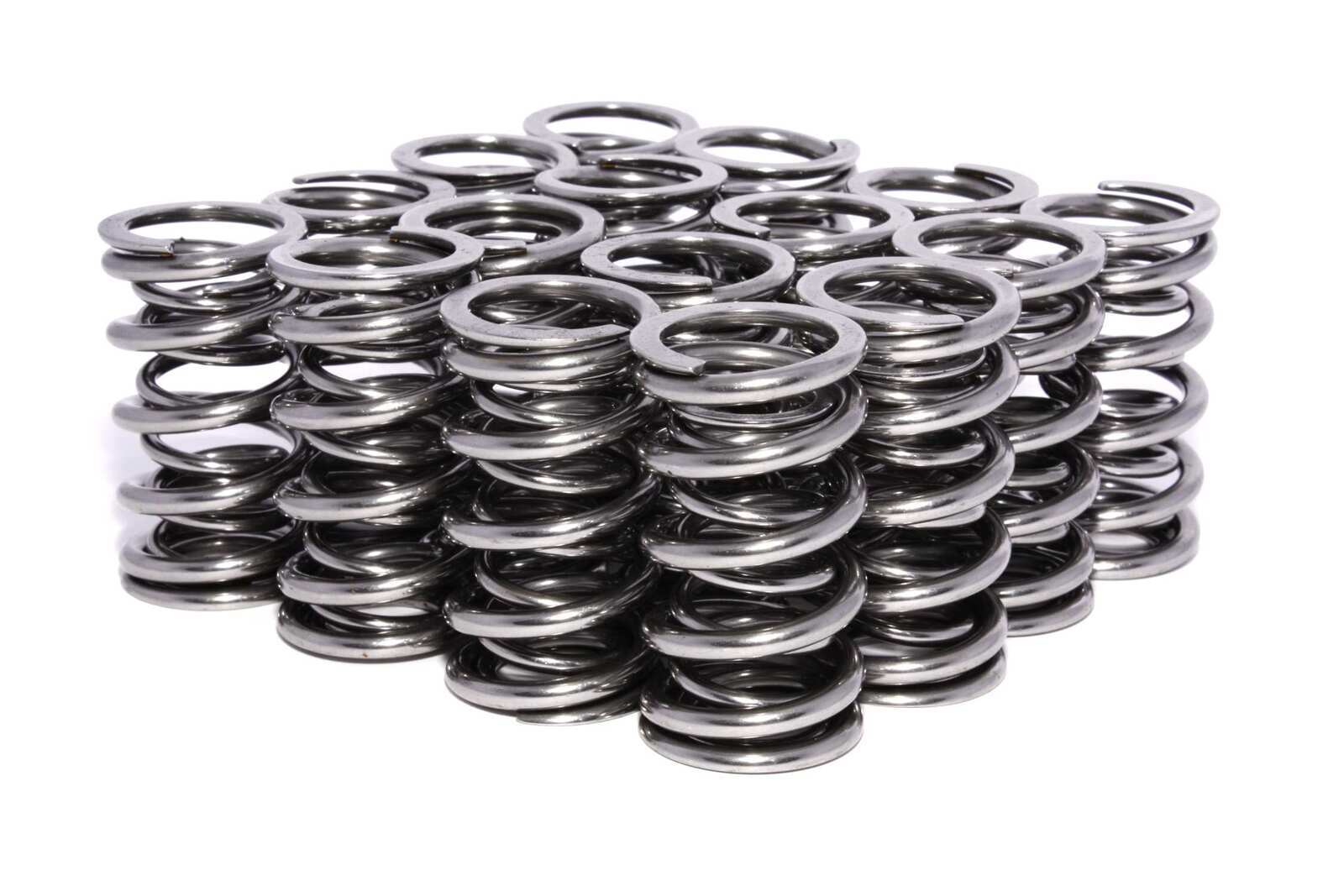

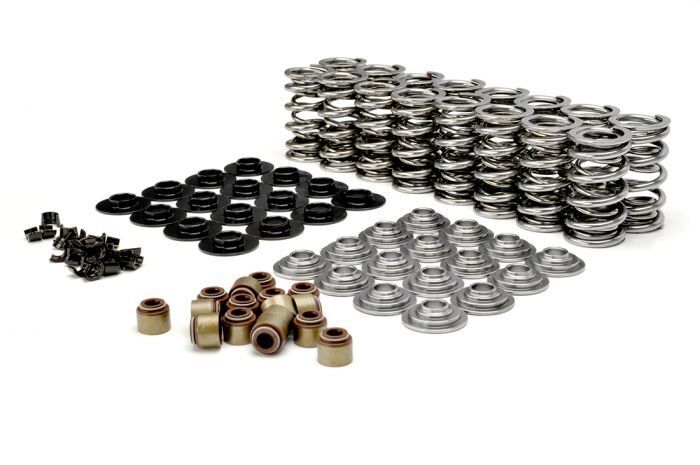

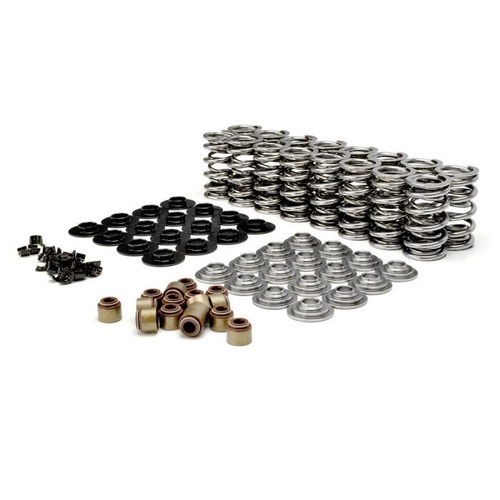

DRP High RPM Polished Dual Valve Springs fits 351C Cleveland & BBC 454 for Hydraulic Roller Cams.
Proline Race/Endurance high performance series by PAC springs.
Polished LS small OD style Hydraulic Roller Dual Valve Springs kits are the perfect upgrade to your 351 Cleveland or Big Block Chevy 454. These PAC hydraulic roller valve springs kits utilise a custom spec by DRP and combined with DRP hardware give you the best quality at the best price! The small yet powerful spring brings light weight valve train technology upgrade to the traditional Chevy & Cleveland cylinder heads. Achieve higher RPM with a more stable valvetrain.
Dual Valve Springs kit fits: Big Block Chevy 454 & 351 Cleveland.
Valve Spring Series: "Bad Ass" - Premium PAC endurace, Polished multi stage treatment.
Installed Height: 1.900"
Seat Load: 155 lbs@ 1.900"
Spring Rate: 415 lbs/inch
Coil Bind: 1.122"
Max Lift: .710" @ 060" safety.
Valve Spring Finish: Polished - bright.
Spring Retainers: 7 deg fits 11/32 stem (included)
Spring Locators: fits .570" bronze guides (included)
Valve Locks: 7 deg - machined (included)
Valve Stem Seals: Viton - steel jacket small OD. (included)
Made in USA
Specifications
| SKU | DRP-9415P-BBKIT |
| Brand | DRP |
| Seat Height | 1.85 |
| Damper | Yes |
| Seat Pressure | 158 |
| Outer Spring Outside Diameter | 1.55 |
| Outer Spring Inside Diameter | 1.14 |
| Number Of Springs | 2 |
| Inner Spring Inside Diameter | 0.74 |
| Valve Spring Series | Race Endurance |
| Coil Bind Height | 1.16 |
| Spring Rate | 439 |
