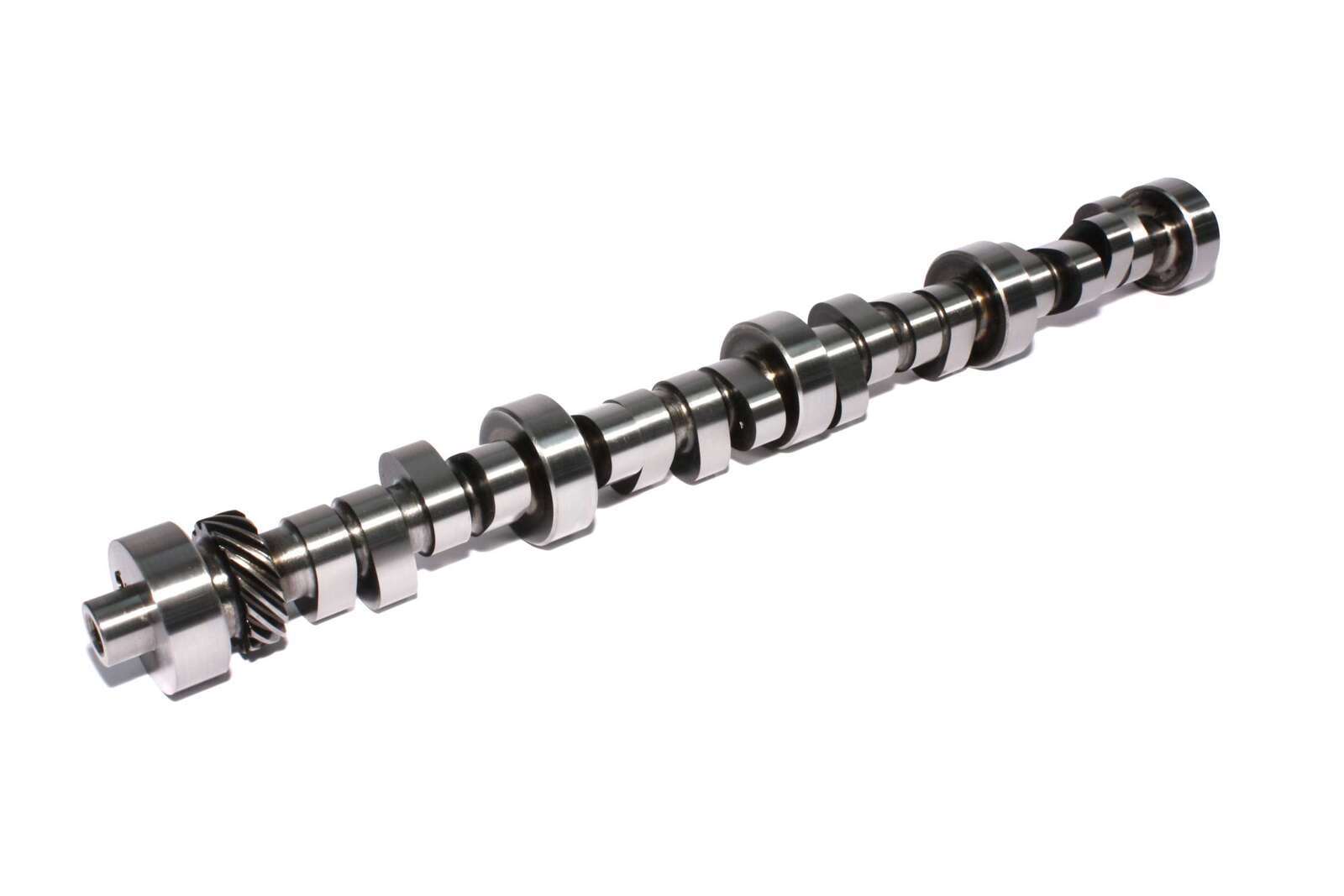

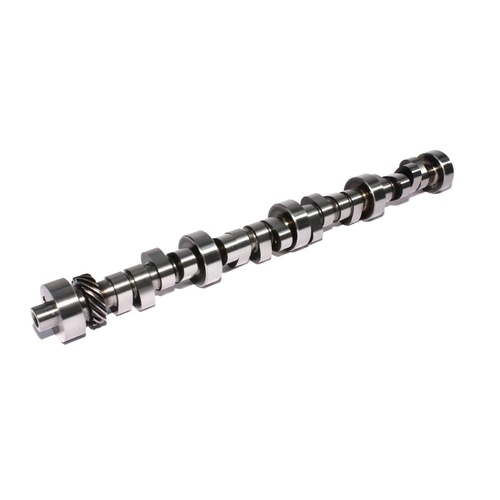

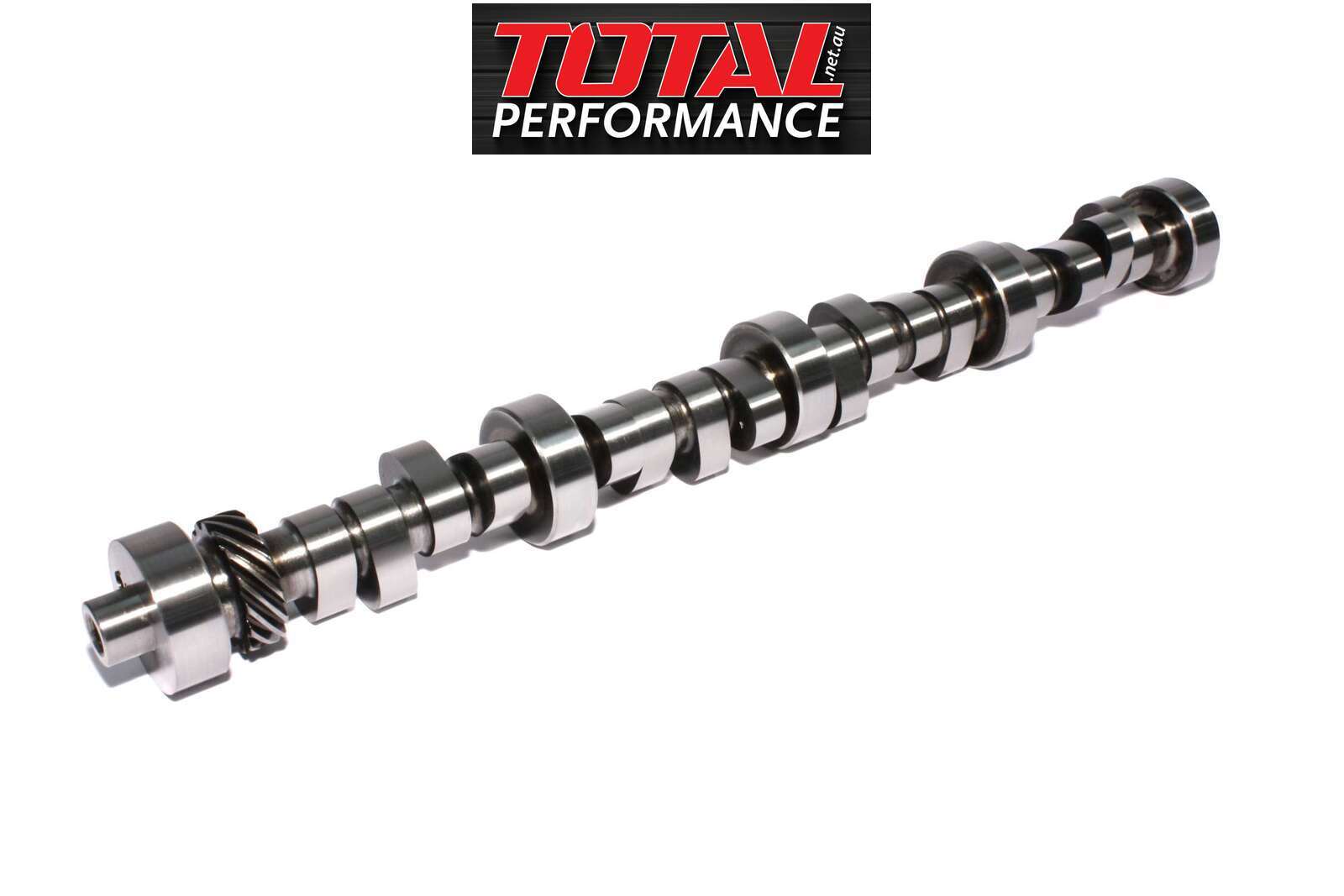

FORD 302 351W Windsor Solid Roller Camshaft, Street Roller, 260/266 0.627''/0.637" LSA 109 COMP CAM Small Block Ford SBF

Ford 302 / 351 Windsor Solid Roller Camshaft – Tough Street Roller

Custom ground Ford 302 and 351 Windsor solid roller camshaft, developed and proven by Total Performance and manufactured by COMP Cams (USA).

This is a tried and tested Windsor camshaft grind designed for strong street performance, long-term durability and reliable valvetrain control.

Featuring 260/266 duration @ .050” and a 109 LSA, this cam delivers a strong mid-range hit with a tough, lumpy idle, while still maintaining street manners. The lobe design is valvetrain friendly, making it suitable for street-driven cars that still see hard use & tough enough for the strip.

Why This Cam Works

This camshaft uses a street friendly lobe profile, reducing unnecessary valvetrain shock while still delivering the RPM and power expected from a solid roller setup.

Recommended Modifications & upgrades:

Compression Ratio approx 11:1, Single Plane intake, 1 7/8 extracrtors.

Recommended Valve Springs: DRP-8500P Proline Valve Springs link here

Want more options? See our range of Windsor Solid Roller Camshafts in this Category here.

Ideal for:

• 351 Windsor & Stroker Windsor engines

• 360 Cubic inch big bore 302 windsor stokers (Dart Blocks)

• Street/strip combinations

• Tough street cars chasing a race idle and strong pull through the RPM range

This camshaft will carry power hard through the mid-range and continue pulling past 7000 RPM when matched with the right cylinder heads and compression.

Comp Cams Custom Windsor Solid Roller Specs:

• Duration @ 050:  260/266

• Lobe Lift:   0.392''/0.398"

• Valve Lift: 0.627"/0.637" with 1.6 Rocker Ratio

• LSA 109

• Camshaft Type: Street/Strip Solid Roller

• Manufacturer:  COMP CAM

• Camshaft Core Material: Steel Core

• Made in USA
