PROLINE RPM LS1 LS2 LS3 Dual Valve Springs Kits 460lbs Open. 200lbs@1.800" 0.620" Max Lift, 415lbs/in 5.7L 6.0L 6.2L
High RPM Kit, 200lbs@1.800" & 415 lbs/in, 460lbs open
or 4 payments of $201.00 with
Info
*Free shipping on orders over $200
Description

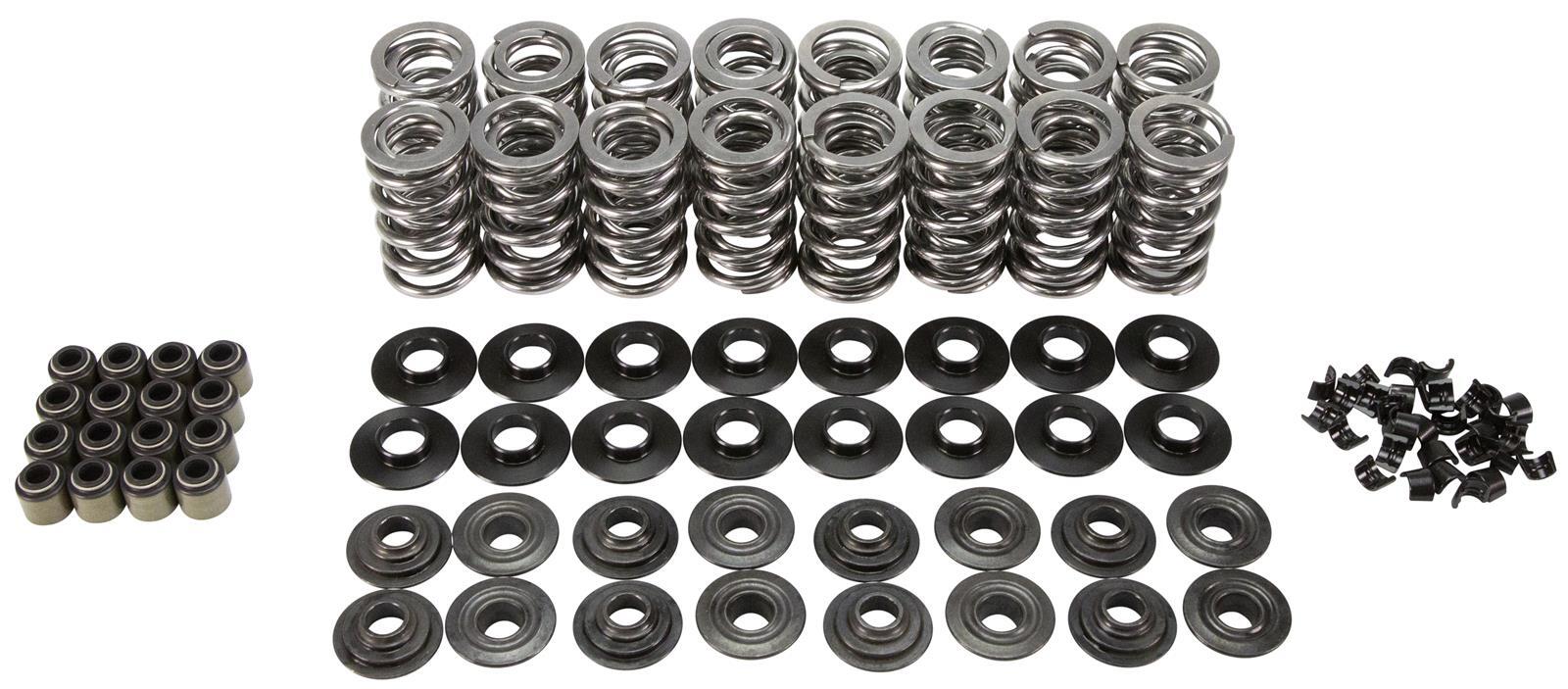

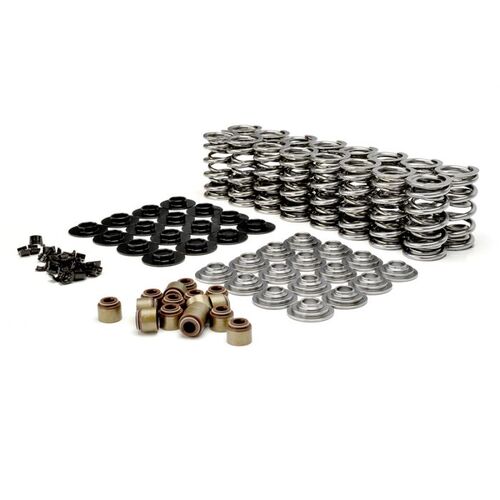

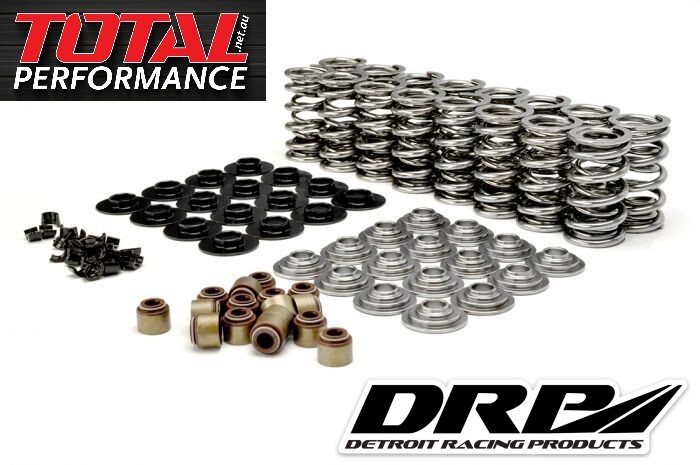

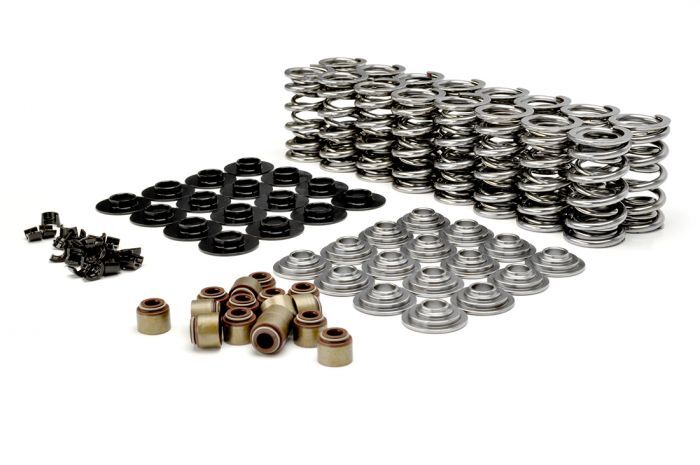

LS DUAL SPRING KIT Detroit Racing Products with PAC Springs & Comp Cams Retainers.
High RPM spring kit for LS1, LS2, LS3. This spring kit is for more agressive cams and 7500rpm+ target range. This is the DRP-9415P spring, however installed at 1.800".
This makes the spring have 200lbs on the seat and 460lbs open at .620" Maximum lift with 060" to coil bind.
Installed Height: 1.800" NOTE: These springs can be installed up or down depending on desired rates.
Closed / Seat Load: 200lbs @ 1.800"
Spring Rate: 415 lbs
Open Load: 460 Lbs @ 0.620" lift
Max Lift: @1.800" .620" @ 060" safety.
Coil Bind: 1.120"
Valve Spring OD: 1.312"
Valve Spring ID: 0.694"
-
MADE IN U.S.A BY PAC SPRINGS.
-
All items are Made in USA.
| Spring Height Inch | Load lbs |
| 1.950 | 134 |
| 1.900 | 155 |
| 1.850 | 176 |
| 1.800 | 197 |
| 1.750 | 217 |
| 1.700 | 238 |
| 1.650 | 259 |
| 1.600 | 280 |
| 1.550 | 300 |
| 1.500 | 321 |
| 1.450 | 342 |
| 1.400 | 363 |
| 1.350 | 383 |
| 1.300 | 404 |
| 1.250 | 425 |
| 1.200 | 446 |
| 1.150 | 467 |
| 1.122 | Coil Bind |
BE ADVISED: IMAGE MAY DIFFER FROM ACTUAL PRODUCT.
Specifications
| SKU | DRP-9415P-LSKIT |
| Brand | DRP |
| Seat Height | 1.835 |
| Seat Pressure | 129 |
| Coil Bind Height | 1.1 |
