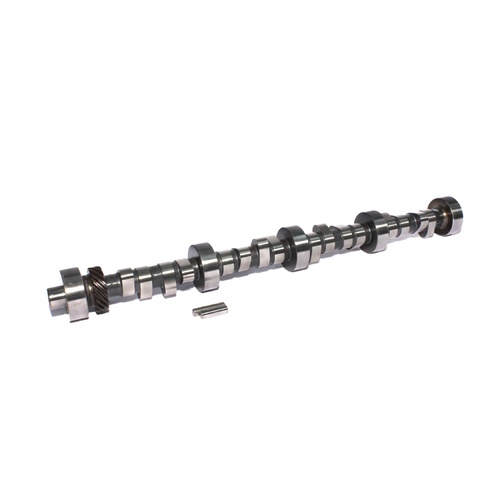

235/239 LSA 108 Hydraulic Roller Camshaft Ford Windsor 5.0L, 302W 351W Small Base Circle Retro Fit Circle, SBF Windsor
RPM Range: 2200-6200 *Small Base Circle
Description
Ford 5.0L, 302 & 351 Windsor Hydraulic Camshaft by Total Performance with Retro Fit Small Base Circle
*Retro Fit Small Base Circle Camshaft
A Total Performance custom grind using a Retro Fit, Small Base circle for the older clyinder blocks that need a small base circle for lifters fitment. This lobe was originally that is taken from the LS family of lobe designs. Great for higher, stable RPM and longevity of lifter life.
This camshaft is desinged to be an all-round, geat muscle car camshaft, not too small and not too big. Has a lumpy idle while delivering strong street performance and driveability. Really packs a punch in the midrange and holds on strong throught out the RPM band.
Initially designed to be used in the late model 5.0L roller blocks and utilisng the drop in, dog bone type lifters. Can be used on all blocks when using the Tie Bar type lifters.
Comp Cams 35-235239RF-HR-08 Specs:
Engine Family: Ford Windsor 302, 351.
Application: Street / Cruiser all round great camshaft for hot rods & muscle cars.
Modifications Required: Street/strip, 9:1+ compression, intake, headers, 2800+ converter and 3.73+ gears, rough idle.
Lifter type: Hydrulic Roller Camshaft with a Reto Fit Small Base Circle. Use in older cylinder blocks with 2 piece seal cranks.
Can be used in early blocks with Tie Bar lifters & drop in lifters
Duration Advertised: 290/294
Duration @ 050: 235/239
Valve Lift: .573" / .576
LSA: 108
Core: High Quality Steel Core -9 Series
Distributor Gears: Recommend to use the Comp Cams Composite or Comp Cams Melonized
Design: Total Performance - Custom Cams Series
Recommended Valve Springs - click the links below:
Specifications
| SKU | 35-235239RF-HR-08 |
| Brand | COMP CAMS |
| intake valve lift | 0.553 |
| Exhaust Valve Lift | 0.576 |
| Lifter Type | Hydraulic Roller |
| Advertised Exhaust Duration | 294 |
| Advertised Intake Duration | 288 |
| Cam Type | Hydraulic Roller |
| Exhaust Duration At .050 Inch Lift | 240 |
| Intake Duration At .050 Inch Lift | 236 |
| Lobe Separation | 110 |
| Camshaft Series | Xtreme Energy |
| Grind Number | XR288RF-HR |
| Basic Operating Rpm Range | 2,200-6,200 |
| Lifters Included | No |
| Valve Springs Required | Yes |
| Camshaft Gear Attachment | 1-Bolt |
| Camshaft Material | Austempered Ductile Iron |
